Kia Stinger: Hood / Hood Insulator Pad

Kia Stinger CK 2018-2024 Service Manual / Front Seat Belt / Hood / Hood Insulator Pad

Repair procedures

Replacement

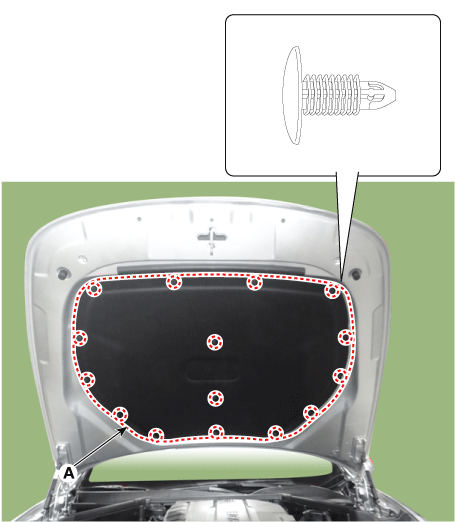

Using a clip remover, detach the clips, and remove the hood insulator pad (A).

Be careful not to scratch the hood panel.

Install in the reverse order of removal.

Replace any damaged clips.
