Kia Stinger: Instrument cluster / Instrument Cluster Control

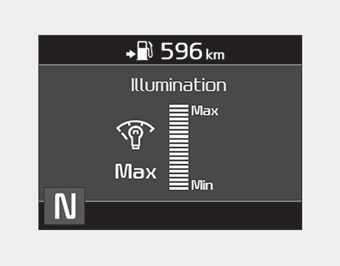

Adjusting Instrument Cluster Illumination

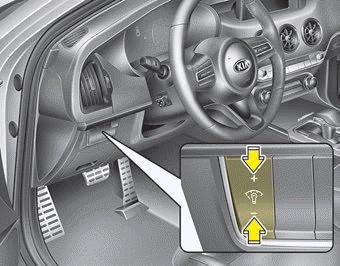

The brightness of the instrument panel illumination is changed by pressing the
illumination control button (“+” or “-”) when the Engine Start/Stop button is ON,
or the taillights are turned on.
- If you hold the illumination control button (“+” or “-”), the brightness
will be changed continuously.
- If the brightness reaches to the maximum or minimum level, an alarm will
sound.
■ Type A
■ Type B
1. Tachometer
2. Speedometer
3. Engine coolant temperature gauge
4. Fuel gauge
5. LCD display
6.Warning and indicator lights ...
■ Type A
■ Type B
The LCD display modes can be changed by using the control buttons on the steering
wheel.
(1) : MODE button for changing modes
(2) /OK : SELECT scroll switch for setting ...
