Kia Stinger CK: Intake And Exhaust System / Air Cleaner

Kia Stinger (CK) 2018-2023 Service Manual / Engine Mechanical System / Intake And Exhaust System / Air Cleaner

Components and components location

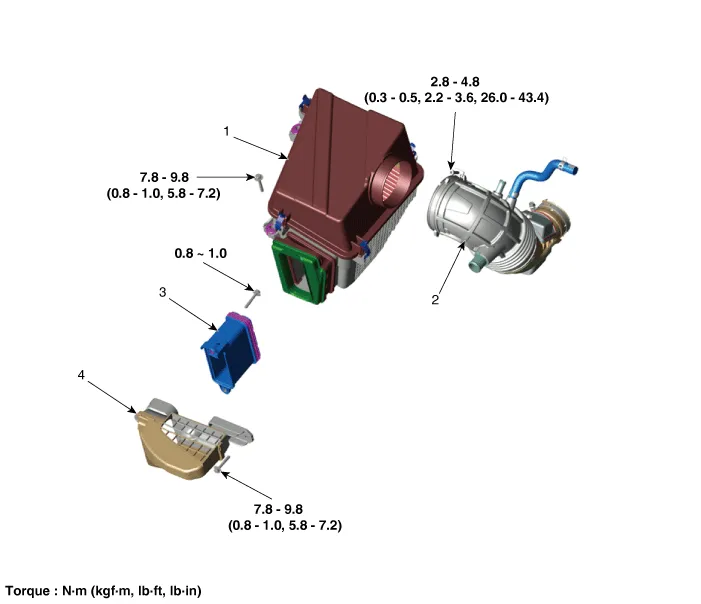

Components

1. Air cleaner assembly
2. Air intake hose

3. Air cleaner adapter
4. Air duct

Repair procedures

Removal and Installation

1.	Remove the engine cover. (Refer to Engine and Transmission Assembly - "Engine Cover")

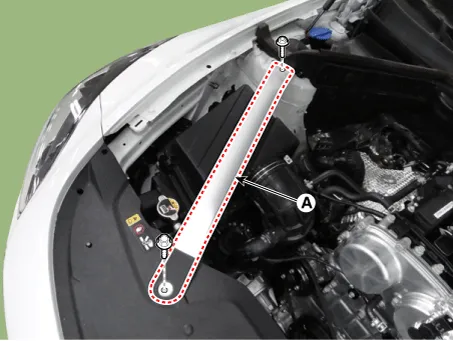

Remove the RH front strut bar (A).

Tightening torque :

46.1 - 60.8 N·m (4.7 - 6.2 kgf·m, 34.0 - 44.8 lbf·ft)

Remove the air cleaner assembly.

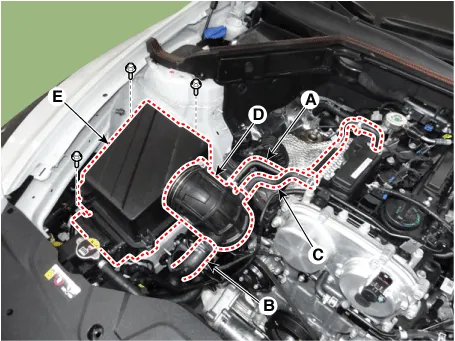

(1)	Disconnect the breather hose (A), recirculation hose (B) and vacuum hose (C).

(2)

Disconnect the air intake hose (D) and then remove the air cleaner assembly (E).

Tightening torque

Hose clamp :

2.8 - 4.8 N·m (0.3 - 0.5 kgf·m, 2.2 - 3.6 lb·ft. 26.0 - 43.4 lb·in)

Air cleaner assembly :

7.8 - 9.8 N·m (0.8 - 1.0 kgf·m, 5.8 - 7.2 lb·ft)

4.	Install in the reverse order of removal.

Replacement

Air Cleaner Element

Remove the RH front strut bar (A).

Tightening torque :

46.1 - 60.8 N·m (4.7 - 6.2 kgf·m, 34.0 - 44.8 lbf·ft)

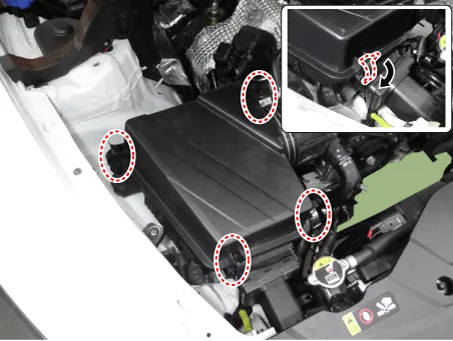

2.	Open the air cleaner element cover by unlocking the clamp.

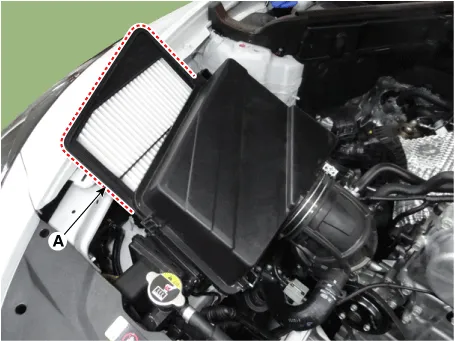

Replace the air cleaner element (A) with a new one.

If there are foreign substances inside the air cleaner assembly, wipe the inside of the air cleaner assembly and then replace the air cleaner element.

4.	Close the air cleaner cover by hooking the clamps.

Inspection

1.	Remove the air cleaner element.

2.	Check if the air filter is excessively dirty. If so, replace the air cleaner element.

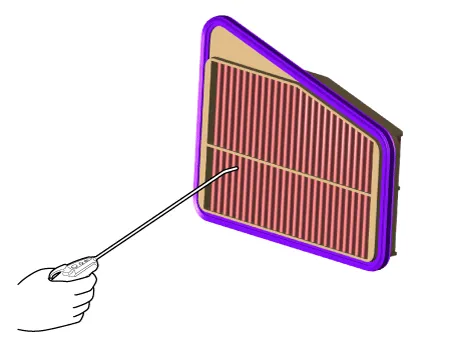

3.	If the air cleaner element needs to be cleaned, blow compressed air as shown in the illustration to clean it.
