Kia Stinger CK: Cylinder Block / Drive Plate

Kia Stinger (CK) 2018-2023 Service Manual / Engine Mechanical System / Cylinder Block / Drive Plate

Repair procedures

Removal and Installation

1.	Remove the automatic transmission. (Refer to Automatic Transmission System - "Automatic Transmission")

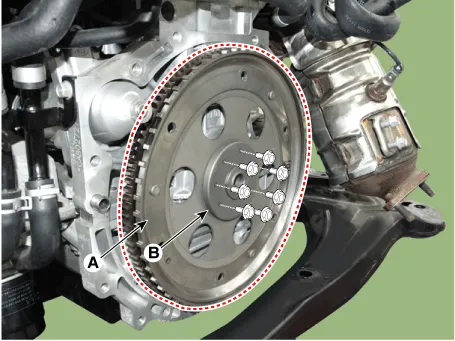

Remove the drive plate adapter (A) and drive plate (B).

Tightening torque :

117.7 - 127.5 N·m (12 - 13 kg·m, 86.8 - 94.0 lb·ft)

•	Always use new drive plate bolts.

•	Install and uniformly tighten the 7 bolts, in several passes.

3.	Install in the reverse order of removal.
