Kia Stinger CK: SRSCM / Seat Belt Buckle Switch (BS)

Kia Stinger (CK) 2018-2023 Service Manual / Restraint / SRSCM / Seat Belt Buckle Switch (BS)

Description and operation

Description

The SRSCM shall monitor the status of the driver and front passenger seat belt buckle. The SRSCM provides one pin each for the driver and front passenger seat belt buckle status input. The seat belt buckle circuit operates from internal boost voltage supplied by the SRSCM, and uses chassis ground for the signal return. The buckle status shall modify the SRSCM deployment. If the seat belt is unbuckled, the corresponding pretensioner will not be deactivated.

Components and components location

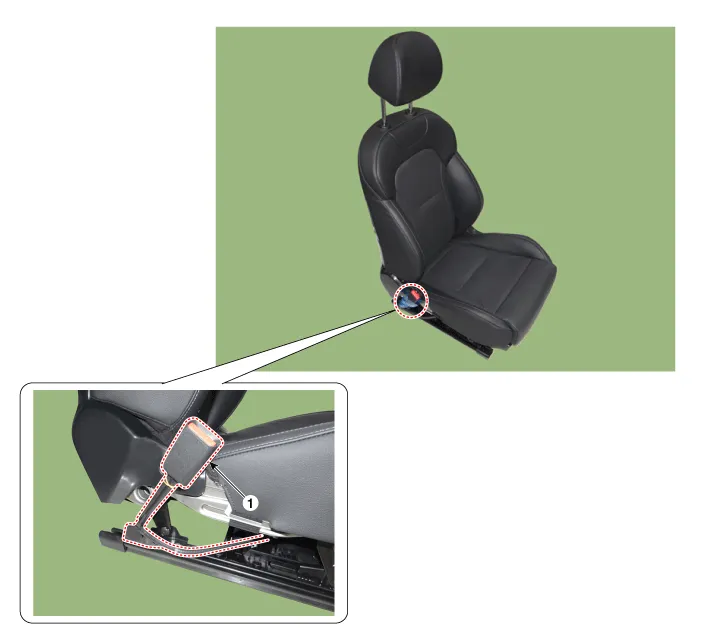

Components

1. Seat Belt Buckle Switch (BS)

Repair procedures

Removal

1.	1. Disconnect the negative battery terminal, and wait for at least three minutes before beginning to work.

2.	Remove the front seat assembly. (Refer to the Body - "Front Seat Assembly")

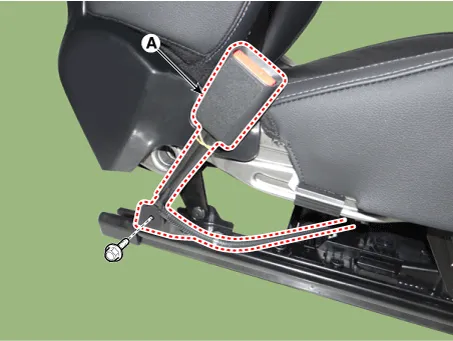

3.	Loosen the mouting bolt and then remove the seat belt buckle switch.

Installation

1.	Disconnect the negative battery terminal, and wait for at least three minutes before beginning to work.

2.	Install in the reverse order of removal.

3.	Reconnect the negative battery terminal.

4.	After installing the seat belt buckle switch, confirm proper system operation: • Switch "ON" the ignition. The SRS indicator light should turn on for about six seconds and then off.
