Service data
Service Data
Ignition System

Spark Plug

Item
Specification
Type
SILZKR8H9G
Gap
0.8 - 0.9 mm
(0.0314 - 0.0354 in.)
Electrode Material
Iridium

Charging System

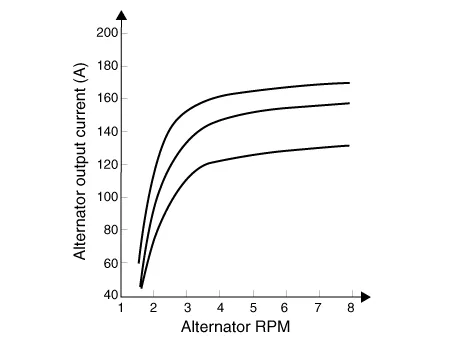

Alternator

▷ 13.5V, 150A

Item
Specification
Rated voltage
13.5V , 150A
Speed in use
0 - 18,000 rpm
Pin
1
Voltage regulator
IC Regulator built in type
Default regulated voltage (V) [COM terminal]
14.39 - 15.43 [-35°C(31°F)]
14.15 - 14.95 [25°C(77°F)]
13.23 - 14.49 [140°C(284°F)]
Pully Type
OAP

Battery

▷AGM80L - DIN

Item
Specification
Capacity [20 hr / 5 hr] (AH)
80 / 64
Cold Cranking Amperage (A)
800 (SAE) / 800 (EN)
Reserve Capacity (Min)
155
Specific Gravity
1.28 - 1.34 [25°C (77°F)]
Voltage (V)
12

▷CMF80L - DIN

Item
Specification
Capacity [20 hr / 5 hr] (AH)
80 / 64
Cold Cranking Amperage (A)
660 (SAE) / 660 (EN)
Reserve Capacity (Min)
145
Specific Gravity
1.27 - 1.29 [25°C (77°F)]
Voltage (V)
12

▷CMF90L-DIN

Item
Specification
Capacity [20 hr / 5 hr] (AH)
90 / 72
Cold Cranking Amperage (A)
740 (SAE) / 740 (EN)
Reserve Capacity (Min)
170
Specific Gravity
1.27 - 1.29 [25°C (77°F)]
Voltage (V)
12

▷MF80L-DIN : Openable

Item
Specification
Capacity [20 hr / 5 hr] (AH)
80 / 64
Cold Cranking Amperage (A)
660 (SAE) / 660 (EN)
Reserve Capacity (Min)
145
Specific Gravity
1.27 - 1.29 [25°C (77°F)]
Voltage (V)
12


•

Model type description

•

Cold Cranking Ampere (CCA): Cold Cranking Amps is a rating used in the battery industry to define a battery's ability to start an engine in cold temperatures.

–

The rating is the number of amps a new, fully charged battery can deliver at -18°C(-0.4°F) for 30 seconds, while maintaining a voltage of at least 7.2 volts for a 12 volt battery.

–

The higher the CCA rating, the greater the starting power of the battery.

•

RESERVE CAPACITY (RC) : Reserve Capacity is a battery industry rating, defining a battery's ability to power a vehicle with an inoperative alternator or fan belt.

–

The rating is the number of minutes a battery at 26.7 °C(80 °F) can be discharged at 25 amps and maintain a voltage of 10.5 volts for a 12 volt battery.

–

The higher the reserve rating, the longer your vehicle can operate should your alternator or fan belt fail.



BCI Type

Capacity
(5 hr / 20 hr)
Length
Width
Height
Total Height
L (mm)
W (mm)
H (mm)
TH (mm)
28/35
188 - 192
126 - 130
198 - 202
218 - 222
32/40
194 - 198
133 - 137
199 - 203
223 - 227
36/45
203 - 207
173 - 177
200 - 204
221 - 225
44/55
213 - 217
173 - 177
198 - 202
218 - 222
48/60
228 - 232
173 - 177
200 - 204
221 - 225
54/68
258 - 262
173 - 177
198 - 202
220 - 224
56/70
258 - 262
173 - 177
198 - 202
223 - 227
64/80
274 - 278
170 - 174
198 - 202
221 - 225
70/88
349 - 353
172 - 176
186 - 200
183 - 187
72/90
300 - 304
170 - 174
200 - 204
221 - 225
76/95
294 - 298
172 - 176
198 - 202
220 - 224
80/100
326 - 330
170 - 174
203 - 207
225 - 229

DIN Type

Capacity
(5 hr / 20 hr)
Length
Width
Height
Total Height
L (mm)
W (mm)
H (mm)
TH (mm)
36/45
205 - 207
173 - 175
164 - 168
188 - 190
48/60
240 - 242
173 - 175
164 - 168
188 - 190
54/68
276 - 278
173 - 175
164 - 168
188 - 190
64/80
313 - 315
173 - 175
164 - 168
188 - 190
72/90
351 - 353
173 - 175
164 - 168
188 - 190
80/100
351 - 353
173 - 175
164 - 168
188 - 190
88/110
392 - 394
173 - 175
164 - 168
188 - 190

AGM DIN Type

Capacity
(5 hr / 20 hr)
Length
Width
Height
Total Height
L (mm)
W (mm)
H (mm)
TH (mm)
40/50
205 - 207
173 - 175
164 - 168
188 - 190
48/60
227 - 229
173 - 175
164 - 168
188 - 190
56/70
276 - 278
173 - 175
164 - 168
188 - 190
64/80
312 - 314
173 - 175
164 - 168
188 - 190
72/90
351 - 353
173 - 175
164 - 168
188 - 190
84/105
392 - 394
173 - 175
164 - 168
188 - 190

Starting System

Starter

Item
Specification
Rated voltage
12 V, 1.2 kW
The number of pinion teeth
11
Performance
[No-load, 11 V]
Ampere
Max. 70 A
Speed
Min. 2,400 rpm

Item
Specification
Rated voltage
12 V, 1.4 kW
The number of pinion teeth
13
Performance
[No-load, 11.5 V]
Ampere
Max. 100 A
Speed
Min. 1,915 rpm

Tightening torque
Tightening Torques

Item
N.m
kgf.m
lb-ft
Ignition coil mounting bolt
9.8 - 11.8
1.0 - 1.2
7.2 - 8.7
Spark plug
14.7 - 24.5
1.5 - 2.5
10.9 - 18.1
Alternator B-terminal tightening nut
9.8 - 11.8
1.0 - 1.2
7.2 - 8.7
Alternator mounting bolt
49.0 - 63.7
5.0 - 6.5
36.2 - 47.0
Battery (+) terminal tightening nut
7.8 - 9.8
0.8 - 1.0
5.2 - 8.7
Battery (-) terminal tightening nut
3.9 - 5.9
0.4 - 0.6
2.9 - 4.3
Battery mounting bracket bolt
19.6 - 29.4
2.0 - 3.0
14.4 - 21.7
Battery tray mounting bolt
19.6 - 29.4
2.0 - 3.0
14.4 - 21.7
Battery sensor cable mounting bolt (Chassis ground)
10.8 - 13.7
1.1 - 1.4
8.0 - 10.1
Starter mounting bolt
49.0 - 63.7
5.0 - 6.5
36.2 - 47.0

Engine Electrical System

Charging System
