Kia Stinger CK: Smart cruise control with stop & go system / Vehicle to vehicle distance setting (Smart cruise control system)
Contents:
To set vehicle to vehicle distance

This function allows you to program the vehicle to maintain relative distance
to the vehicle ahead without depressing the accelerator pedal or brake pedal.
The vehicle to vehicle distance will automatically activate when the smart cruise
control system is on.
Select the appropriate distance according to road conditions and vehicle speed.

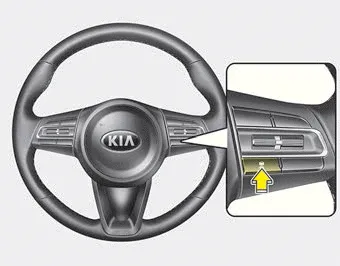

Each time the button is pressed, the vehicle to vehicle distance changes as follows:

For example, if you drive at 90 km/h (56 mph), the distance is maintained as
follows;
Distance 4 - approximately 52.5 m (172 feet)
Distance 3 - approximately 40 m (130 feet)
Distance 2 - approximately 32.5 m (106 feet)
Distance 1 - approximately 25 m (82 feet)
✽ NOTICE
The distance is set to the last set distance when the system is used for the
first time after starting the engine.
