Kia Stinger CK: Tires/Wheels / Wheel

Kia Stinger (CK) 2018-2023 Service Manual / Suspension System / Tires/Wheels / Wheel

Repair procedures

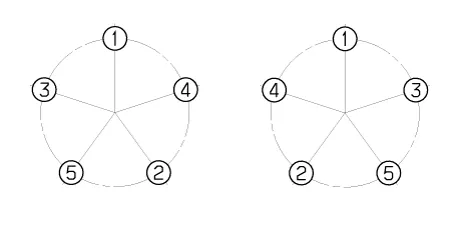

Hub nut tightening sequence

Tighten the hub nuts as follows.

Tightening torque:

107.9 - 127.5 N·m (11.0 - 13.0 kgf·m, 79.6 - 94.0 lb·ft)



When using an impact gun, final tightening torque should be checked using a torque wrench.

Run out inspection

1.

Jack up the vehicle.

2.

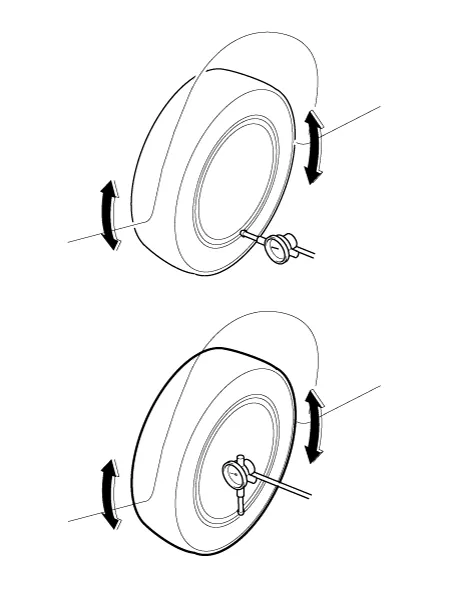

Measure the wheel run-out by using a dial indicator as shown below.

Run-out
Aluminum
Radial mm (in.)
Below 0.3 (0.0118)
Lateral mm (in.)
Below 0.3 (0.0118)

3.

If measured value exceeds the standard value, replace the wheel.
