Kia Stinger: Hydraulic System / P Position Solenoid Valve (ON/OFF)
Specifications
Item
|
Specification
|
Control type
|
ON/OFF
|
Control pressure kpa (kgf/cm², psi)
|
539.36
(5.5, 78.23)
|
Current (mA)
|
0 - 600
|
Coil resistance (Ω)
|
10.5 ± 0.5
|
Components and components location

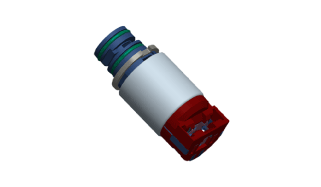

1. P position solenoid valve
|
2. Solenoid valve support bracket
|
Description and operation
| • |
P position solenoid valve is ON/OFF type.
|
| • |
When TCM supplies current to solenoid valve, the solenoid valve operates
and controls the P range.
|
Solenoid Valve Operation
Table
|
ON/OFF
|
(P)
|
P
|
|
N
|
●
|
1
|
●
|
2
|
●
|
3
|
●
|
4
|
●
|
5
|
●
|
6
|
●
|
7
|
●
|
8
|
●
|
REV
|
●
|

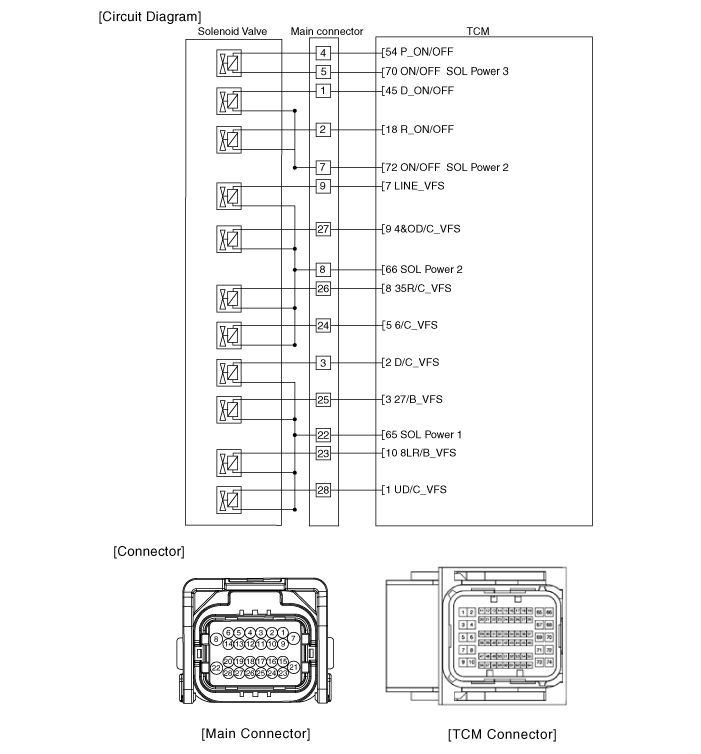

Schematic diagrams
Repair procedures
| 2. |

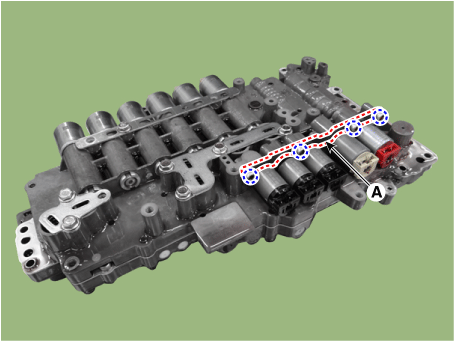

Disconnect the main connector (A).
|
| 3. |
Measure the resistance between power terminal (5) and signal terminal
(4).
|
Specification : 10.5 ± 0.5 Ω
|
|
| • |
Maintain clean condition so that foreign substance does not get
into the automatic transmission.
|
| • |
Use a coated apron, latex gloves, and stainless tray to prevent
foreign substance from getting into the transmission.
|
|
| 1. |
Remove the under cover.
(Refer to Engine Mechanical System - "Engine Room Under Cover").
|
| 2. |

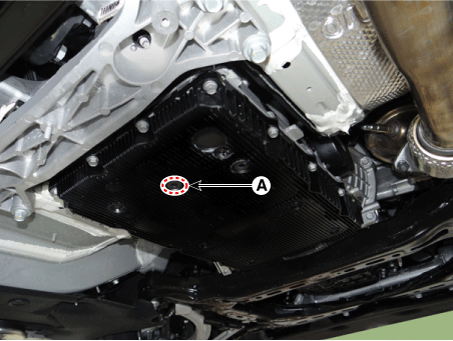

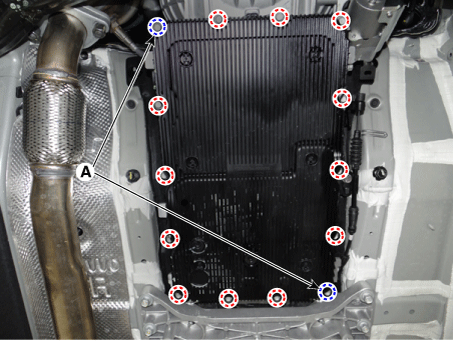

Remove the ATF drain plug (A), allow the fluid to drain out and then
reinstall the drain plug.
|
Tightening torque :
22.6 - 24.5 N·m (2.3 - 2.5 kgf·m, 16.6 - 18.1 lb·ft)
|
| •
|
ATF can be reused. Collect it in a clean beaker.
|
| •
|

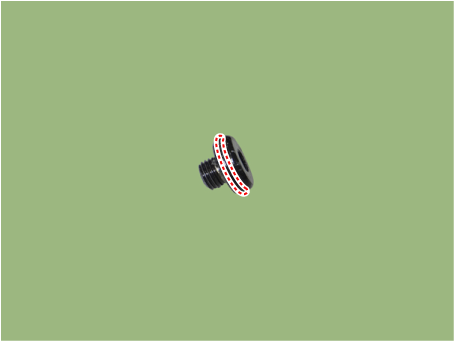

The existing ATF drain plug O-ring must be replaced with
a new one. (Do not reuse it.)
|
|
|
| 3. |

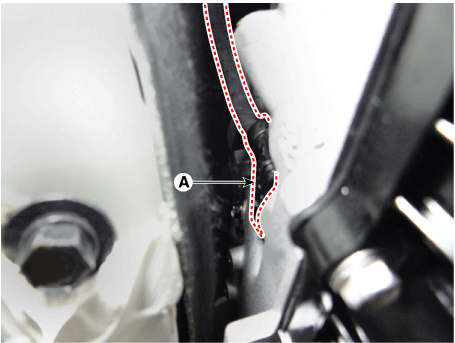

Disconnect the main connector (A).
|
| 4. |

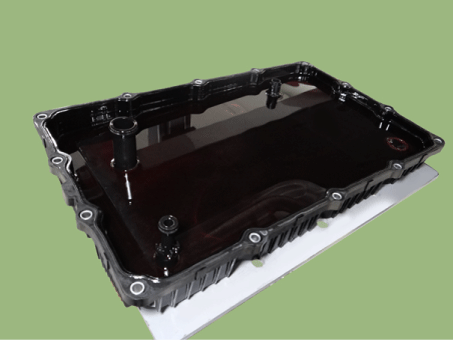

Remove the valve body cover.
| (1) |

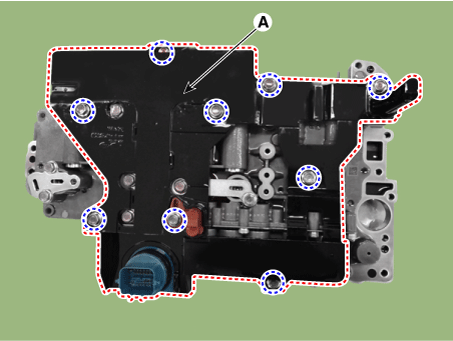

Loosen the all valve body mounting bolts except for the bolts
(A) in the corner.
|
Tightening torque :
13.7 - 15.7 N·m (1.4 - 1.6 kgf·m, 10.1 - 11.6 lb·ft)
|
|
| (2) |

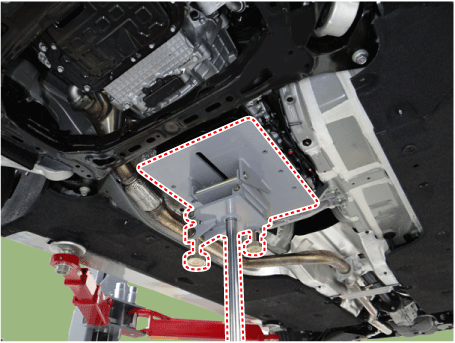

Loosen the two bolts (A) in the corner after supporting the valve
body cover on a jack and then remove the valve body cover by lowering
the jack slowly.
|
Be careful when removing the valve body cover because
the remaining ATF remains in the valve body cover.
|
|
|
| 5. |

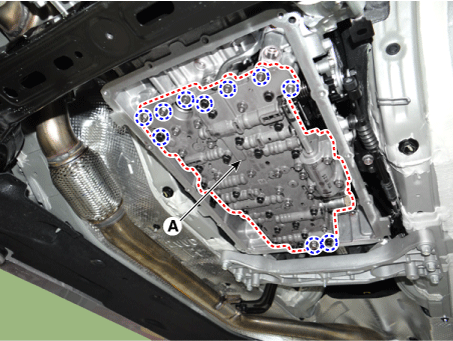

Remove the valve body assembly (A) after loosening the bolts.
|
Tightening torque :
9.8 - 11.8 N·m (1.0 - 1.2 kgf·m, 7.2 - 8.7 lb·ft)
|
|
| 6. |

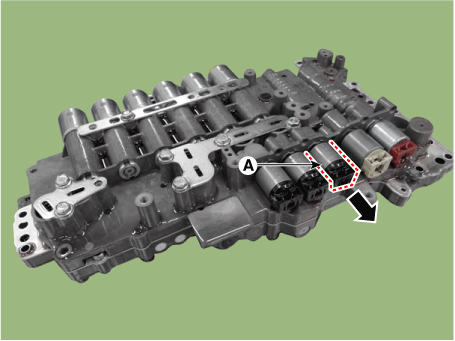

Remove the E-module (A) after loosening the bolts.
|
Tightening torque :
9.8 - 11.8 N·m (1.0 - 1.2 kgf·m, 7.2 - 8.7 lb·ft)
|
|
When installing, after mounting the E-module, lightly tap the
connector part (A) to insert the connector certainly and then tighten
the bolts.
|
|
| 7. |

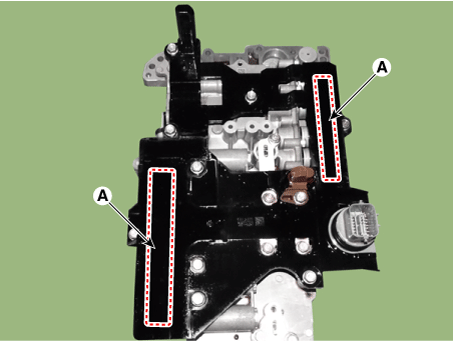

Remove the solenoid valve support bracket (A).
|
Tightening torque:
9.8 - 11.8 N·m (1.0 - 1.2 kgf·m, 7.2 - 8.7 lb·ft)
|
|
| 8. |
Remove the P position solenoid valve (A).
|
| 1. |
Install in the reverse order of removal.
| •
|

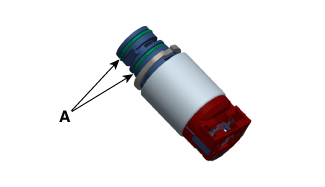

When installing, apply the ATF oil or petroleum jelly
to the O-rings (A) to prevent damage.
|
| •
|

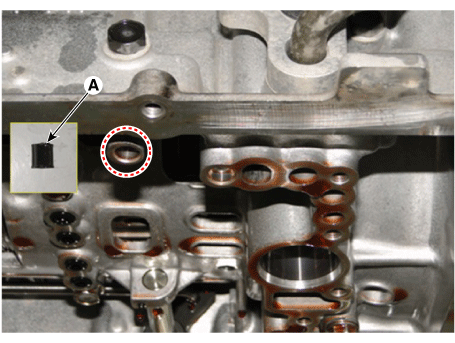

Check if the pipe (A) is inserted on the marked area
before mounting the valve body assembly.
|
|
|
| 2. |
Perform the procedures below after installing.
| (1) |
Refill the automatic transmission with fluid.
(Refer to Hydraulic System - "Fluid")
|
| (2) |
Clear the diagnostic trouble codes (DTC) using the KDS. Disconnecting
the battery negative terminal will not clear the DTCs. Clear DTCs
using the KDS at all times.
|
| (3) |
After installing, check for leakage of coolant or fluid from
hose connection during engine start.
|
|
