Kia Stinger: Liftgate / Power liftgate

Kia Stinger CK 2018-2024 Owners Manual / Features of your vehicle / Liftgate / Power liftgate

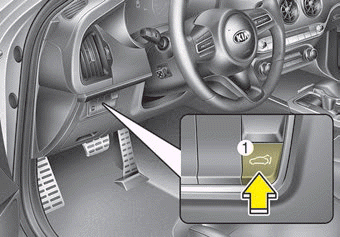

(1) Power liftgate open/close button

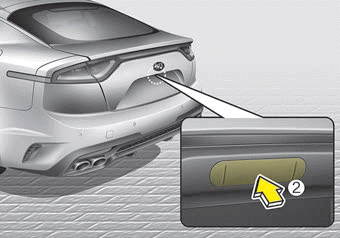

(2) Power liftgate handle switch

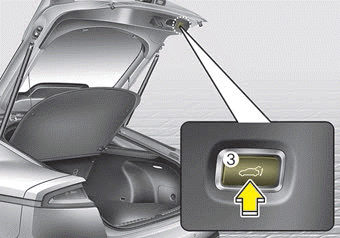

(3) Power liftgate close button

✽ NOTICE

If the engine start/stop button is ON, the power liftgate can operate when the automatic transmission is in P (Park).

WARNING

Never leave children or animals unattended in your vehicle.

Children or animals might operate the power liftgate which could result in injury to themselves or others, or damage the vehicle.

✽ NOTICE

Do not put heavy objects on the power liftgate when you operate.

WARNING

Make sure that there are no people or objects in the path of the power liftgate (or smart liftgate) prior to use. Serious injury, damage to the vehicle or damage to surrounding objects may result if contact with the power liftgate (or smart liftgate) occurs.

CAUTION

Do not close or open the power liftgate manually. This may cause damage to the power liftgate. If it is necessary to close or open the power liftgate manually when the battery is discharged or disconnected, do not apply excessive force.

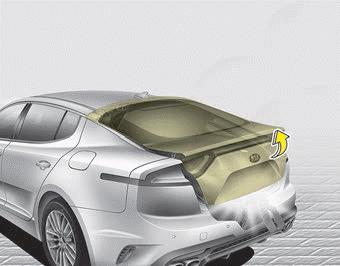

Opening the liftgate

The power liftgate will open automatically by doing one of the following:

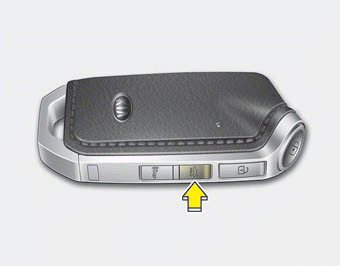

• Press the liftgate unlock button on the smart key for approximately one second.

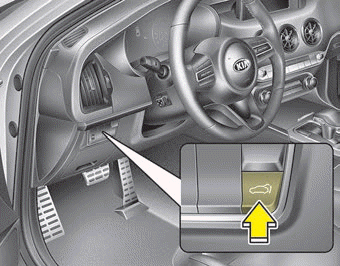

• Press the power liftgate open button for approximately one second.

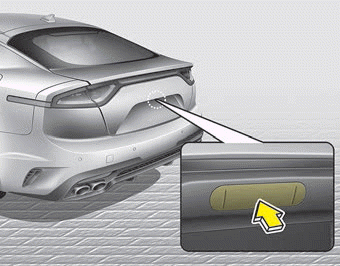

• Press the liftgate handle switch carrying the smart key with you.

Closing the liftgate

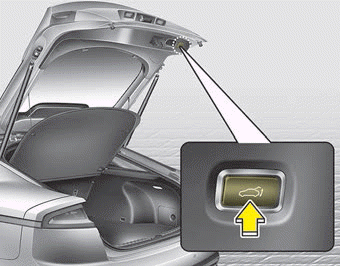

• Press the power liftgate close button for approximately one second when the liftgate is opened.

The liftgate will close and lock automatically.

• Press the power liftgate close button for approximately one second when the liftgate is opened. The liftgate will close and lock automatically.

Power liftgate Non-Opening or Closing Conditions
Automatic stop and Reverse

If, during power opening or closing, the liftgate is blocked by an object or part of someone’s body, the power liftgate will detect the resistance and it will stop movement or move to the full open position to allow the object to be cleared.

However, if an object is thin or soft, or the liftgate is near the latched position, the automatic stop and reversal may not detect the resistance and the closing operation will continue. If the power liftgate is forced by a strong impact, the automatic stop and reversal may operate.

If the automatic stop and reverse feature operates more than twice during one opening or closing operation, the power liftgate may stop at that position.

If this occurs, close the liftgate manually and operate the liftgate automatically again.

WARNING

To prevent serious injury and damage take the following precautions when operating the power liftgate :

- Keep all faces, hands, arms, body parts and other objects away from the path of the power liftgate.
- Do not intentionally place any body parts or objects in the path of the power liftgate to make sure the automatic stop and reversal operates.
- Do not allow children to play with the power liftgate.

How to reset the power liftgate

If the battery has been discharged or disconnected, or if the related fuse has been replaced or disconnected, for the power liftgate to operate normally, reset the power liftgate as follows:

1.Push the P(Parking) button.

2. While Pressing the liftgate close button, press the liftgate handle switch for more than 3 seconds. (the chime will sound)

3. Close the liftgate manually.

If the power liftgate does not work properly after the above procedure, have the system checked by an authorized Kia dealer.

Non-Powered Liftgate
Opening the liftgate The liftgate is locked or unlocked when all doors are locked or unlocked with the smart key or central door lock/unlock switch. Only the liftgate is unlocked if the lif ...

Emergency liftgate safety release
Your vehicle is equipped with the emergency liftgate safety release lever located on the bottom of the liftgate. When someone is inadvertently locked in the luggage compartment, the liftgate can ...
