Description and operation
Description

The Seat Belt Pretensioners (BPT) are installed inside the Center Pillars (LH & RH). When a vehicle crashes at a certain degree of frontal impact, the seat belt pretensioners help reduce the severity of injury to the front seat occupants by retracting the seat belt webbing.

This prevents the front occupants from thrusting forward and hitting the steering wheel or the instrument panel when the vehicle crashes.



Never attempt to measure the circuit resistance of the Seat Belt Pretensioner (BPT) even if you are using the specified tester. If the circuit resistance is measured with a tester, the pretensioner will be ignited accidentally. This will result in serious personal injury.

Components and components location
Components

1. Seat Belt Pretensioner (BPT)


Repair procedures
Removal
1.

Disconnect the battery negative terminal, and wait for at least three minutes before beginning to work.

2.

Remove the door scuff trim.

(Refer to Body (Interior and Exterior) - "Door Scuff Trim")

3.

Remove the center pillar trim.

(Refer to Body (Interior and Exterior) - "Center Pillar Trim)

4.

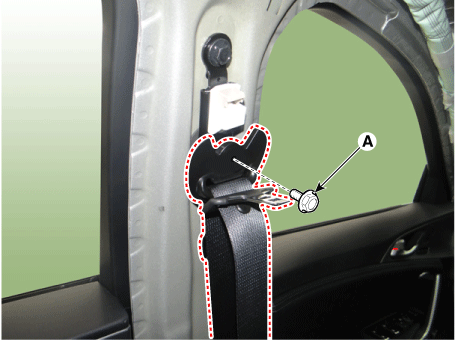

Remove the upper anchir bolt (A).

5.

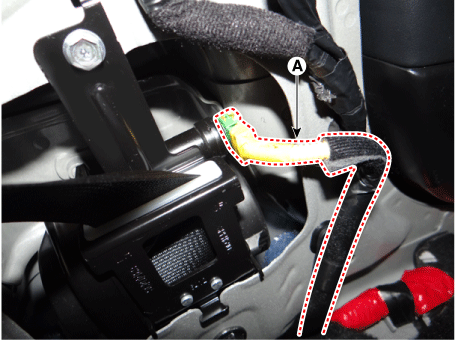

Disconnect the seat belt pretensioner connector (A) and then remove the seat belt pretensioner.

6.

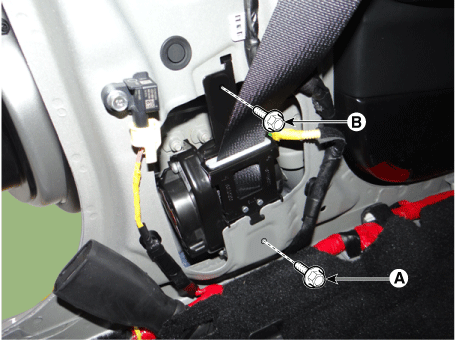

Loosen the seat belt pretensioner bolts (A,B).

Tightening torque

Bolt (A) : 7.8 - 11.8 N·m (0.8 - 1.2 kgf·m, 5.8 - 8.7 lb·ft)

Bolt (B) : 39.2 - 53.9 N·m (4.0 - 5.5 kgf·m, 28.9 - 39.7 lb·ft)

Installation
1.

Disconnect the negative battery terminal, and wait for at least three minutes before beginning to work.

2.

Install in the reverse order of removal.

Seat Belt System
...

Emergency Fastening Device (EFD)
Description and operation Description The Emergency Fastening Device (EFD) operates at the same time with the Seat Belt Pretensioner when the deployment condition is satisfied in the e ...
