Kia Stinger: Engine Electrical System / Specifications

Kia Stinger CK 2018-2024 Service Manual / Engine Electrical System / Specifications

Service data

Service Data

Ignition System

Spark Plug

Item	Specification
Type	SILZKR8H9G
Gap	0.8 - 0.9 mm (0.0314 - 0.0354 in.)
Electrode Material	Iridium

Charging System

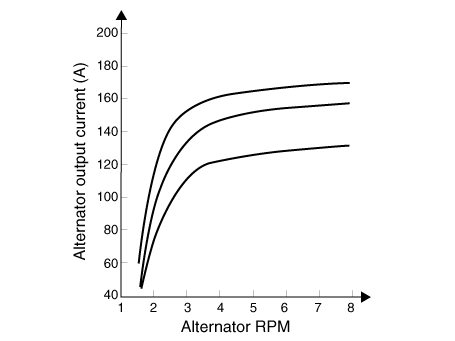

Alternator

▷ 13.5V, 150A

Item	Specification
Rated voltage	13.5V , 150A
Speed in use	0 - 18,000 rpm
Pin	1
Voltage regulator	IC Regulator built in type
Default regulated voltage (V) [COM terminal]	14.39 - 15.43 [-35°C(31°F)]
	14.15 - 14.95 [25°C(77°F)]
	13.23 - 14.49 [140°C(284°F)]
Pully Type	OAP

Battery

▷AGM80L - DIN

Item	Specification
Capacity [20 hr / 5 hr] (AH)	80 / 64
Cold Cranking Amperage (A)	800 (SAE) / 800 (EN)
Reserve Capacity (Min)	155
Specific Gravity	1.28 - 1.34 [25°C (77°F)]
Voltage (V)	12

▷CMF80L - DIN

Item	Specification
Capacity [20 hr / 5 hr] (AH)	80 / 64
Cold Cranking Amperage (A)	660 (SAE) / 660 (EN)
Reserve Capacity (Min)	145
Specific Gravity	1.27 - 1.29 [25°C (77°F)]
Voltage (V)	12

▷CMF90L-DIN

Item	Specification
Capacity [20 hr / 5 hr] (AH)	90 / 72
Cold Cranking Amperage (A)	740 (SAE) / 740 (EN)
Reserve Capacity (Min)	170
Specific Gravity	1.27 - 1.29 [25°C (77°F)]
Voltage (V)	12

▷MF80L-DIN : Openable

Item	Specification
Capacity [20 hr / 5 hr] (AH)	80 / 64
Cold Cranking Amperage (A)	660 (SAE) / 660 (EN)
Reserve Capacity (Min)	145
Specific Gravity	1.27 - 1.29 [25°C (77°F)]
Voltage (V)	12

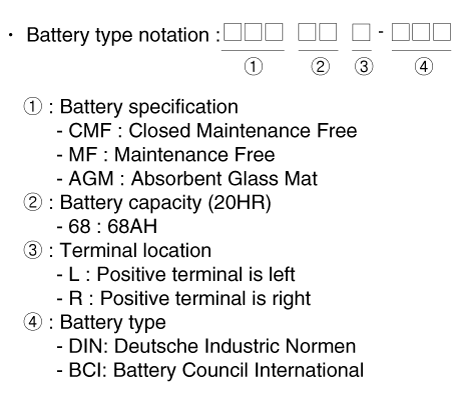

•	Model type description

•	Cold Cranking Ampere (CCA): Cold Cranking Amps is a rating used in the battery industry to define a battery's ability to start an engine in cold temperatures.

–	The rating is the number of amps a new, fully charged battery can deliver at -18°C(-0.4°F) for 30 seconds, while maintaining a voltage of at least 7.2 volts for a 12 volt battery.

–	The higher the CCA rating, the greater the starting power of the battery.

•	RESERVE CAPACITY (RC) : Reserve Capacity is a battery industry rating, defining a battery's ability to power a vehicle with an inoperative alternator or fan belt.

–	The rating is the number of minutes a battery at 26.7 °C(80 °F) can be discharged at 25 amps and maintain a voltage of 10.5 volts for a 12 volt battery.

–	The higher the reserve rating, the longer your vehicle can operate should your alternator or fan belt fail.

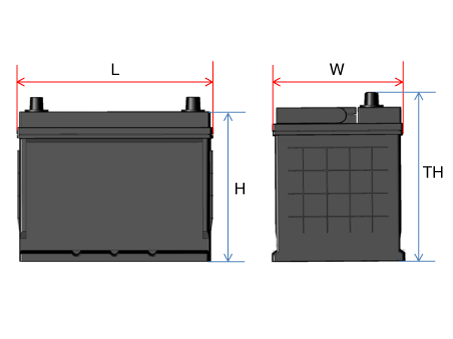

BCI Type

Capacity (5 hr / 20 hr)	Length	Width	Height	Total Height
Capacity (5 hr / 20 hr)	L (mm)	W (mm)	H (mm)	TH (mm)
28/35	188 - 192	126 - 130	198 - 202	218 - 222
32/40	194 - 198	133 - 137	199 - 203	223 - 227
36/45	203 - 207	173 - 177	200 - 204	221 - 225
44/55	213 - 217	173 - 177	198 - 202	218 - 222
48/60	228 - 232	173 - 177	200 - 204	221 - 225
54/68	258 - 262	173 - 177	198 - 202	220 - 224
56/70	258 - 262	173 - 177	198 - 202	223 - 227
64/80	274 - 278	170 - 174	198 - 202	221 - 225
70/88	349 - 353	172 - 176	186 - 200	183 - 187
72/90	300 - 304	170 - 174	200 - 204	221 - 225
76/95	294 - 298	172 - 176	198 - 202	220 - 224
80/100	326 - 330	170 - 174	203 - 207	225 - 229

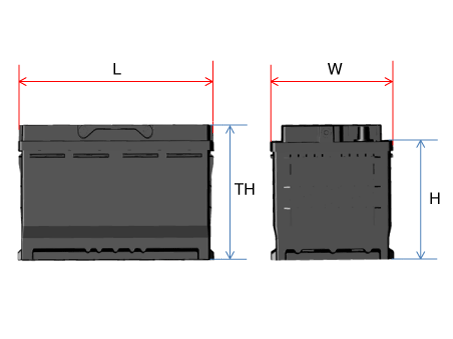

DIN Type

Capacity (5 hr / 20 hr)	Length	Width	Height	Total Height
Capacity (5 hr / 20 hr)	L (mm)	W (mm)	H (mm)	TH (mm)
36/45	205 - 207	173 - 175	164 - 168	188 - 190
48/60	240 - 242	173 - 175	164 - 168	188 - 190
54/68	276 - 278	173 - 175	164 - 168	188 - 190
64/80	313 - 315	173 - 175	164 - 168	188 - 190
72/90	351 - 353	173 - 175	164 - 168	188 - 190
80/100	351 - 353	173 - 175	164 - 168	188 - 190
88/110	392 - 394	173 - 175	164 - 168	188 - 190

AGM DIN Type

Capacity (5 hr / 20 hr)	Length	Width	Height	Total Height
Capacity (5 hr / 20 hr)	L (mm)	W (mm)	H (mm)	TH (mm)
40/50	205 - 207	173 - 175	164 - 168	188 - 190
48/60	227 - 229	173 - 175	164 - 168	188 - 190
56/70	276 - 278	173 - 175	164 - 168	188 - 190
64/80	312 - 314	173 - 175	164 - 168	188 - 190
72/90	351 - 353	173 - 175	164 - 168	188 - 190
84/105	392 - 394	173 - 175	164 - 168	188 - 190

Starting System

Starter

Item		Specification
Rated voltage		12 V, 1.2 kW
The number of pinion teeth		11
Performance [No-load, 11 V]	Ampere	Max. 70 A
	Speed	Min. 2,400 rpm

Item		Specification
Rated voltage		12 V, 1.4 kW
The number of pinion teeth		13
Performance [No-load, 11.5 V]	Ampere	Max. 100 A
	Speed	Min. 1,915 rpm

Tightening torque

Tightening Torques

Item	N.m	kgf.m	lb-ft
Ignition coil mounting bolt	9.8 - 11.8	1.0 - 1.2	7.2 - 8.7
Spark plug	14.7 - 24.5	1.5 - 2.5	10.9 - 18.1
Alternator B-terminal tightening nut	9.8 - 11.8	1.0 - 1.2	7.2 - 8.7
Alternator mounting bolt	49.0 - 63.7	5.0 - 6.5	36.2 - 47.0
Battery (+) terminal tightening nut	7.8 - 9.8	0.8 - 1.0	5.2 - 8.7
Battery (-) terminal tightening nut	3.9 - 5.9	0.4 - 0.6	2.9 - 4.3
Battery mounting bracket bolt	19.6 - 29.4	2.0 - 3.0	14.4 - 21.7
Battery tray mounting bolt	19.6 - 29.4	2.0 - 3.0	14.4 - 21.7
Battery sensor cable mounting bolt (Chassis ground)	10.8 - 13.7	1.1 - 1.4	8.0 - 10.1
Starter mounting bolt	49.0 - 63.7	5.0 - 6.5	36.2 - 47.0
