Kia Stinger: Wide sunroof / Tilting the sunroof
When the sunshade is closed

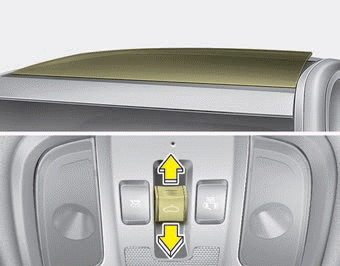

Push the sunroof control lever upward, the sunshade will slide all the way open
then the sunroof glass will tilt.
To stop the sunroof movement at any point, push the sunroof control lever momentarily.
When the sunshade is opened
Push the sunroof control lever upward, the sunroof glass will tilt.
To stop the sunroof movement at any point, push the sunroof control lever momentarily.
When the sunshade is closed
Pull the sunroof control lever backward to the 2nd detent position, and both
the sunshade and sunroof glass will slide all the way open.
When the sunshade is opened
...
To close the sunroof glass with the sunshade
Push the sunroof control lever forward to the first detent position.
To close the sunroof glass only
Push the sunroof control lever forward to the secon ...
