Kia Stinger: Rear Suspension System / Rear Lower Arm

Kia Stinger CK 2018-2020 Service Manual / Suspension System / Rear Suspension System / Rear Lower Arm

Repair procedures
Removal
1.

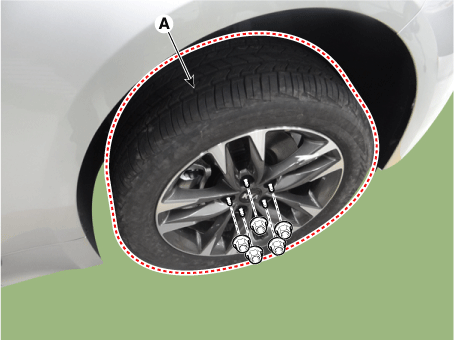

Remove wheel nuts, wheel and tire (A) from hub.

Tightening torque:

107.9 - 127.5 N·m (11.0 - 13.0 kgf·m, 79.6 - 94.0 lb·ft)



Be careful not to damage the wheel bolts when removing the wheel and tire (A).

2.

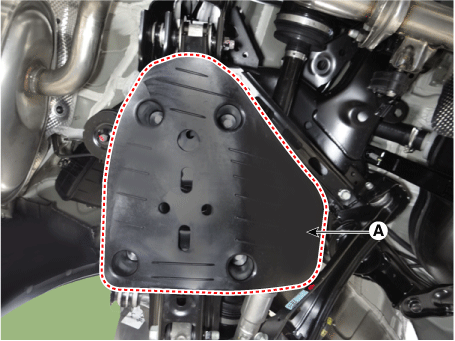

Remove the rear lower arm cover (A).

3.

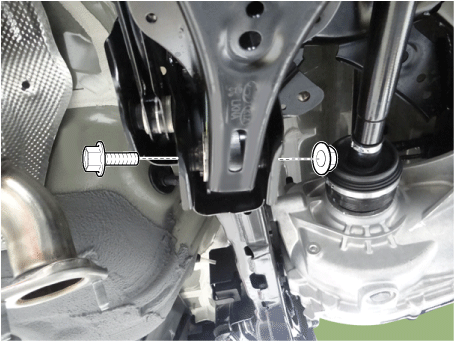

Loosen the rear lower arm bolt & nut and then separate the lower arm from the rear axle.

Tightening torque :

156.9 - 176.5 N·m (16.0 - 18.0 kgf·m, 115.7 - 130.2 lb·ft)



Up the transmission jack under the lower arm in order to remove the rear lower arm in no-load condition.

4.

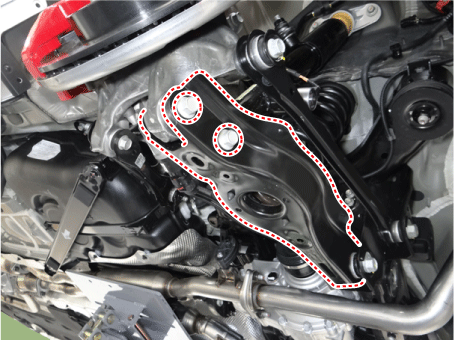

Loosen the bolt & nut and then remove the rear lower arm.

Tightening torque:

137.3 - 156.9 N·m (14.0 - 16.0 kgf·m, 101.3 - 115.7 lb·ft)

5.

Install in the reverse order of removal.



Install at the empty vehicle height when it is assembled.

6.

Check the alignment.

(Refer to Suspension System - "Alignment")

Inspection
1.

Check the bushing for wear and deterioration.

2.

Check the rear lower arm for deformation.

3.

Check the coil spring and spring pad for deterioration and deformation.

4.

Check for all bolts and nuts.
