Kia Stinger: Cooling System / Reservoir Tank

Kia Stinger CK 2018-2025 Service Manual / Engine Mechanical System / Cooling System / Reservoir Tank

Repair procedures
Removal
1.

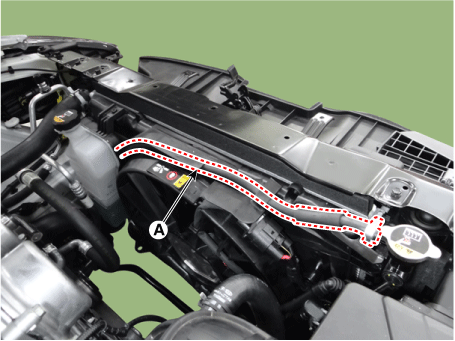

Disconnect the reservoir hose (A).

2.

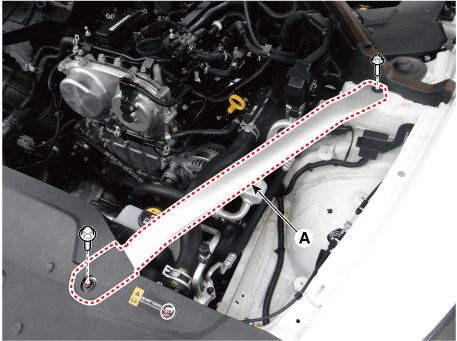

Remove the LH front strut bar (A).

3.

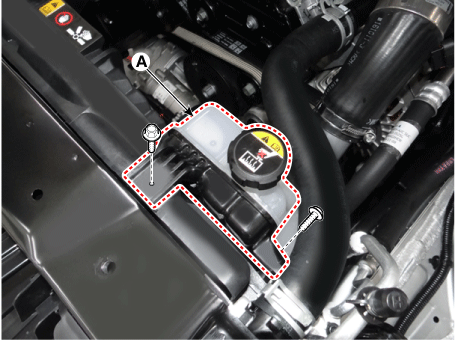

Remove the reservoir tank (A).

Tightening torque :

4.9 - 8.3 N·m (0.50 - 0.85 kgf·m, 3.6 - 6.1 lb·ft, 43.4 - 73.8 lb·in)

4.

Install in the reverse order of removal.
