Kia Stinger: Body / Climate Control Air Filter
Repair procedures
The climate control air filter should be replaced according to the maintenance
schedule.
If the vehicle is operated in severely polluted city or on dusty rough roads
for a long period, it should be inspected more frequently and replaced earlier than
schedule.
When replacing the climate control air filter, replace in the following procedure
and be careful not to damage other components.
1. |
Remove the climate control air filter.
|
2. |
Check that the climate control air filter is not excessively dirty.
If the climate control air filter is excessively dirty, replace
the climate control air filter.
|
|
3. |

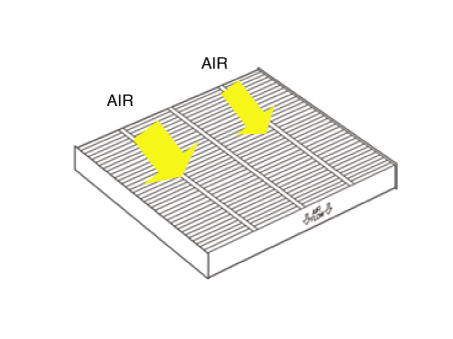

When cleaning the climate control air filter, blow compressed air as
shown in the illustration to clean it.
Be careful with the direction of the compressed air on the climate
control air filter.
|
|
1. |

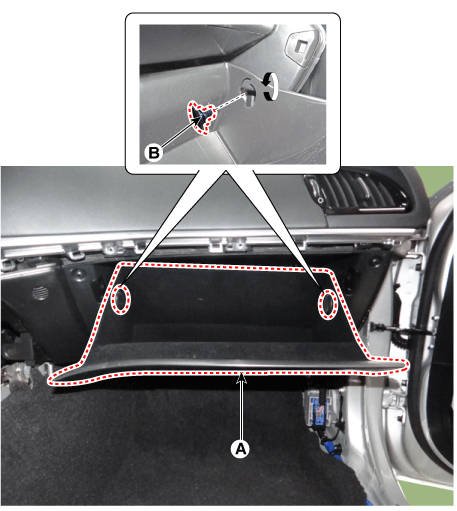

Disconnect the stopper (B) from the glove box (A).
|
2. |

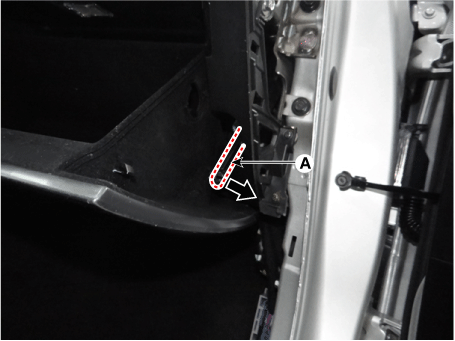

Disconnect the air damper (A) from the glove box (B).
|
3. |

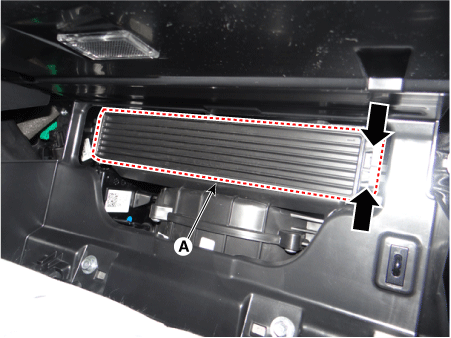

Remove the filter cover (A) by pressing the knob.
|
4. |

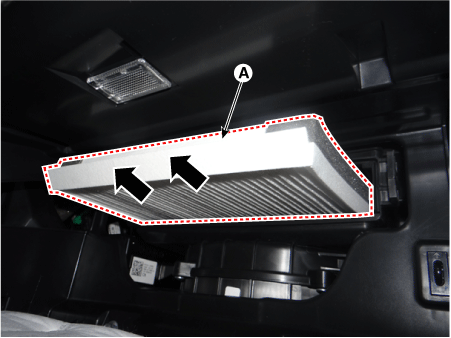

Replace the air filter (A) with a new one according to the direction
of air filter.
•
|
To remove the filter easily, press the right side inward
then pull out the filter.
|
•
|
In case of driving in an air-polluted area or rugged
terrain, check and replace the air filter as frequently
as possible.
|
|
|
5. |
Install in the reverse order of removal.
|
