Kia Stinger: Crash Pad / Crash Pad Center Panel

Kia Stinger CK 2018-2023 Service Manual / Body (Interior and Exterior) / Crash Pad / Crash Pad Center Panel

Components and components location
Component Location

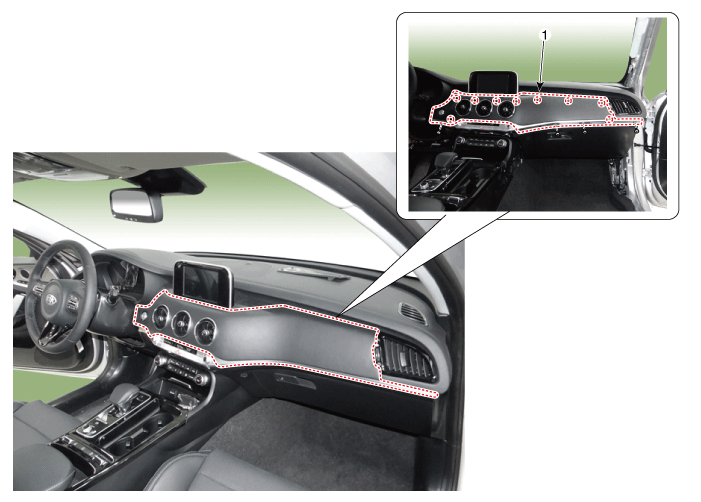

1. Crash pad passenger side panel

Repair procedures
Replacement


Put on gloves to protect your hands.



Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

Take care not to bend or scratch the trim and panels.

1.

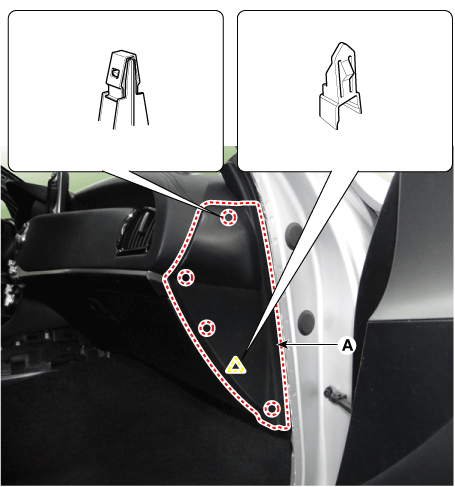

Remove the crash pad side cover [RH] (A) by using a remover.

2.

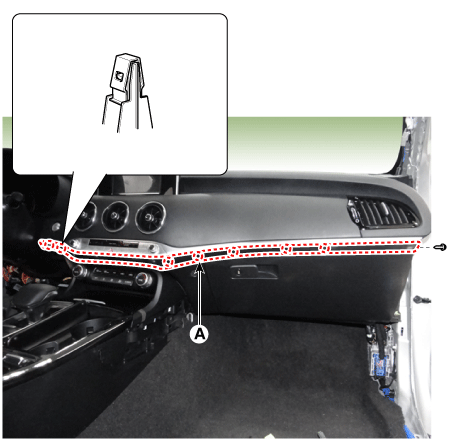

Remove the crash pad garnish [RH] (A) after loosening the mounting screws.

3.

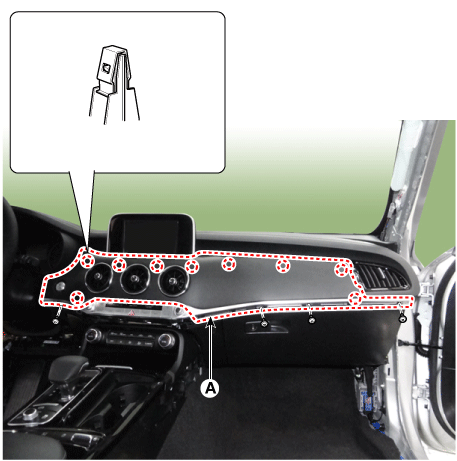

Separate the crash pad passenger side panel (A) after loosening the mounting screws.

4.

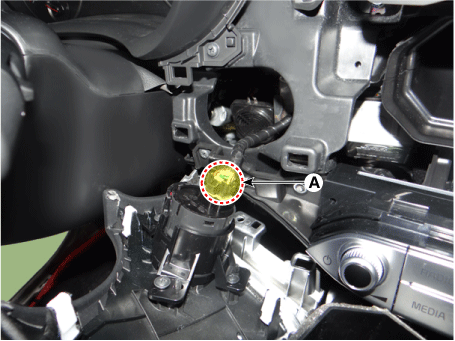

Disconnect the start/stop button connector (A) and then remove the crash pad garnish.

5.

Install in the reverse order of removal.



Make sure the connector are connected in properly.

Replace any damaged clips.
