Description and operation
Description

Via the seat belt/door switch, the ISG function can detect if the driver side seat belt is fastened and the driver side door is closed. If the driver side seat belt/door are not fastened/closed, the ISG system will not operate. If the seat belt/door are unfastened/opened, the engine will not start or stop by the ISG function for safety reasons.

Repair procedures
Inspection

Front Door Lock Module Inspection

1.

Remove the front door trim.

(Refer to Body - "Front Door Trim")

2.

Remove the front door module.

(Refer to Body - "Front Door Module")

3.

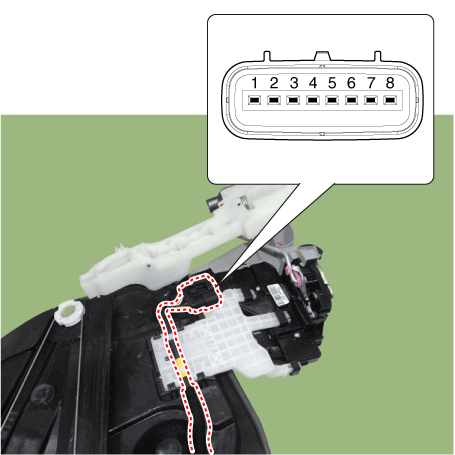

Disconnect the connector from the actuator.

[Central Lock]

No.
Pin Information
LH
RH
1
-
AJAR switch
2
Motor 1
COM
3
Motor 2
Lock / Unlock switch
4
-
-
5
-
-
6
Lock / Unlock switch
Motor 2
7
COM
Motor 1
8
AJAR switch
-

[Dead Lock]

No.
Pin Information
LH
RH
1
Motor 1
AJAR switch
2
Motor 2
COM
3
Motor 3
Lock / Unlock switch
4
Key unlock switch
Key lock switch
5
Key lock switch
Key unlock switch
6
Lock / Unlock switch
Motor 3
7
COM
Motor 2
8
AJAR switch
Motor 1

4.

Check actuator operation by connecting power and ground as shown below. To prevent damage to the actuator, apply battery voltage only momentarily.

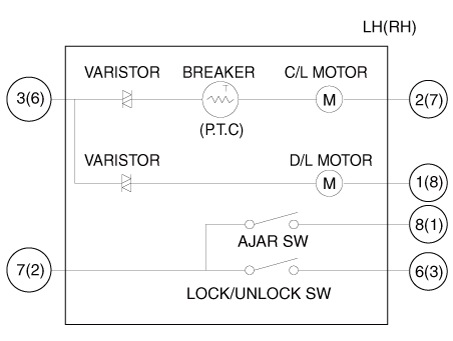

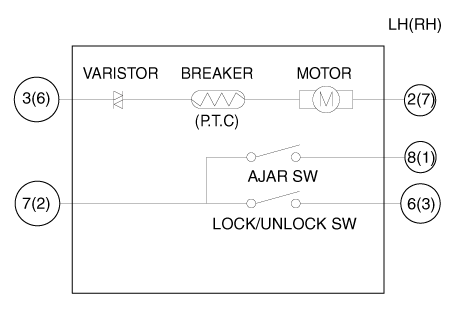

[Central Lock (Without key switch)]

[Dead Lock (Without Key Switch)]

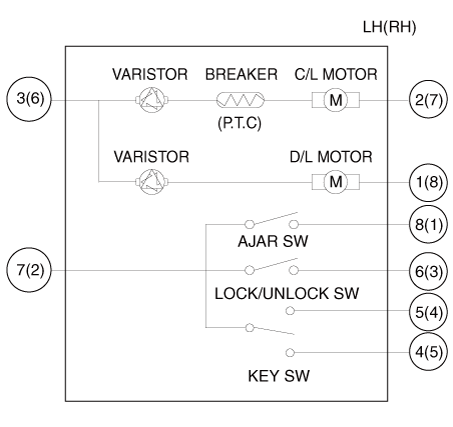

[Dead Lock (With Key Switch)]

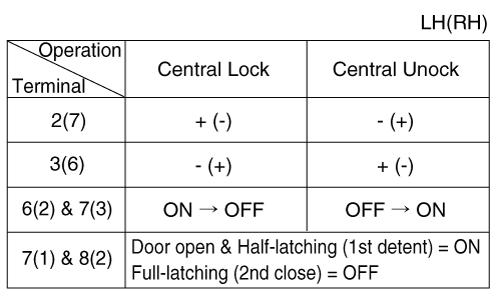

[Central Lock]

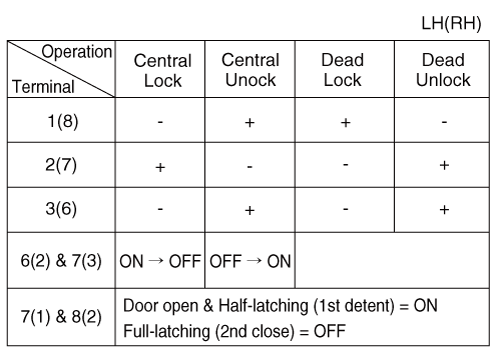

[Dead Lock]

Installation
1.

Install in the reverse order of removal.
