Kia Stinger: Liftgate / Emergency liftgate safety release

Kia Stinger CK 2018-2024 Owners Manual / Features of your vehicle / Liftgate / Emergency liftgate safety release

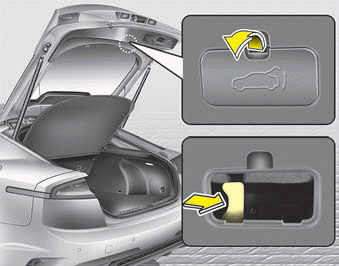

Your vehicle is equipped with the emergency liftgate safety release lever located on the bottom of the liftgate. When someone is inadvertently locked in the luggage compartment, the liftgate can be opened by doing as follows:

1. Remove the cover.

2. Push the release lever to the right.

3. Push up the liftgate.

WARNING

WARNING

NEVER allow anyone to occupy the rear cargo area of the vehicle at any time. If the liftgate is partially or totally latched and the person is unable to get out, serious injury or death could occur due to lack of ventilation, exhaust fumes and rapid heat build-up, or because of exposure to cold weather conditions. The liftgate is also a highly dangerous location in the event of a crash because it is not a protected occupant space but is a part of the vehicle’s crush zone.

WARNING

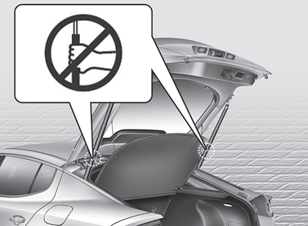

Do not grasp the part supporting the liftgate (gas lifter), as this may cause serious injury.

Power liftgate
(1) Power liftgate open/close button (2) Power liftgate handle switch (3) Power liftgate close button ✽ NOTICE If the engine start/stop button is ON, the power liftgate can operate when ...

Smart liftgate
On a vehicle equipped with a smart key, the liftgate can be opened with no-touch activation using the Smart Liftgate system. ...
