Kia Stinger: Evaporative Emission Control System / Fuel Filler Cap

Kia Stinger CK 2018-2025 Service Manual / Emission Control System / Evaporative Emission Control System / Fuel Filler Cap

Description and operation
Description

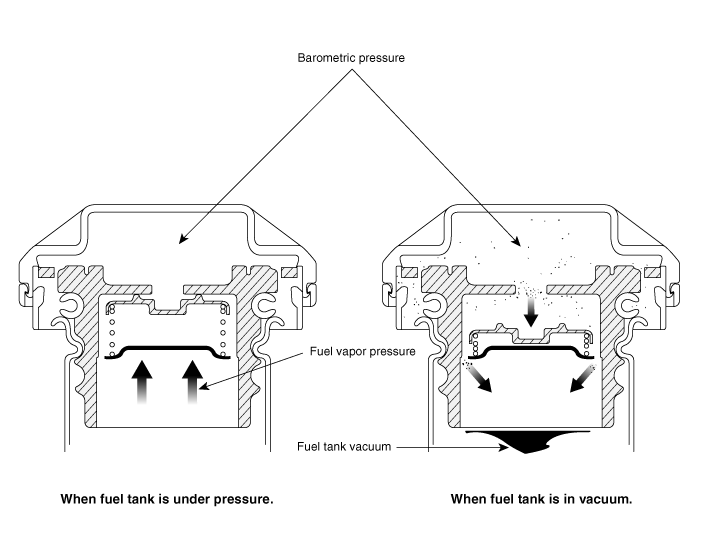

A ratchet tightening device on the threaded fuel filler cap reduces the chances of incorrect installation, which seals the fuel filler. After the gaskets on the fuel filler cap and the filler neck flange contact each other, the ratchet produces a loud clicking noise indicating that the seal has been set.
