Kia Stinger: Adaptive Front-Lighting System (AFS) / Height Sensor

Kia Stinger CK 2018-2024 Service Manual / Body Electrical System / Adaptive Front-Lighting System (AFS) / Height Sensor

Components and components location

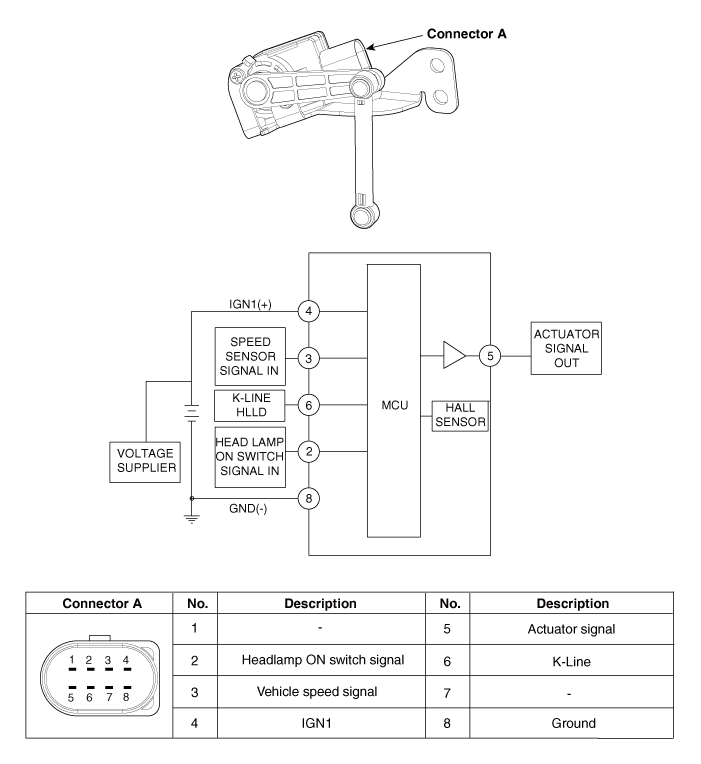

Components

Description and operation
Description

Height sensor sense a change of vehicle height and send this signal to AFS ECU. Height sensor is comprised of rotor/stator, PCB coil and sensor lever.

Sensor check the lever angle value which is calculated by the magnetic field of stator.

Repair procedures
Removal
1.

Disconnect the negative (-) battery terminal.

2.

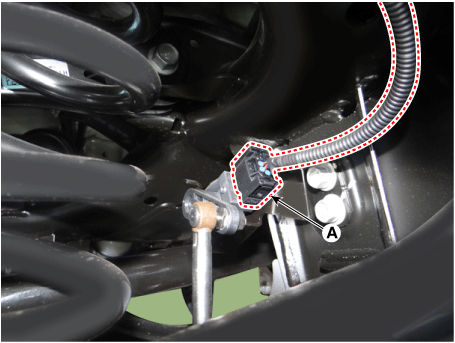

Disconnect height sensor connector (A).

3.

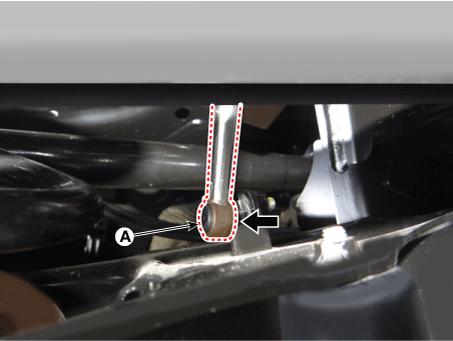

Remove the height sensor link (A).

4.

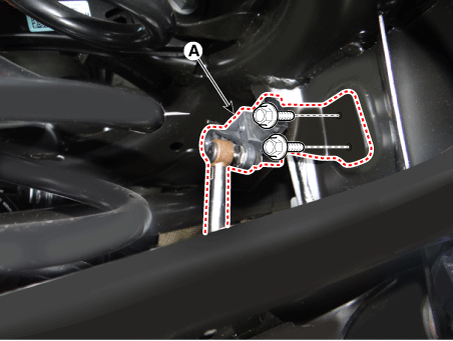

Remove the height sensor (A) after loosening the mounting bolt.

Installation
1.

Install the height sensor and link.

2.

Connect the height sensor connector.

3.

Connect the negative (-) battery terminal.
