Kia Stinger CK: Audio / Audio Unit

Kia Stinger (CK) 2018-2023 Service Manual / Body Electrical System / Audio / Audio Unit

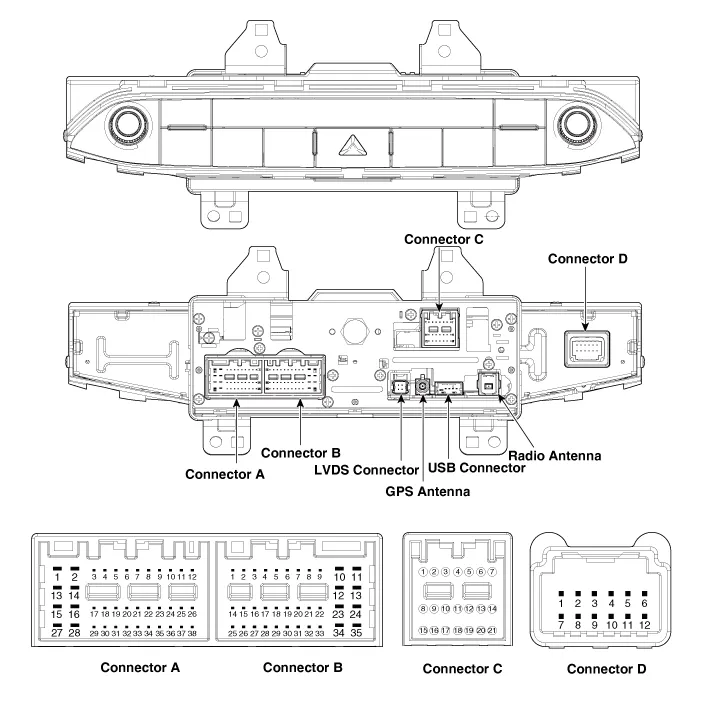

Components and components location

Components

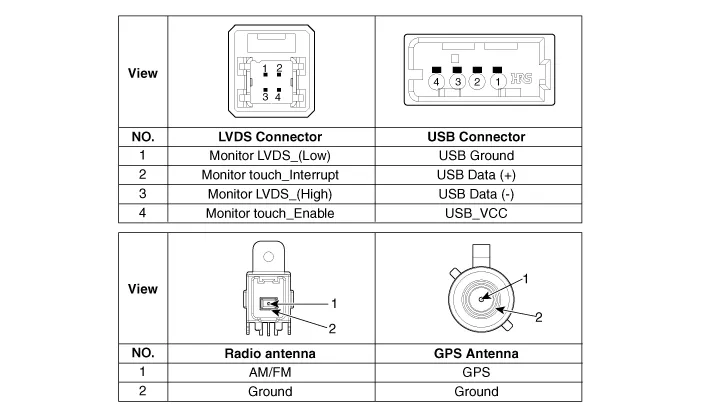

Connector Pin Information

No.	Connector A	Connector B	Connector C	Connector D
1	Rear door left speaker (+)	⁻	⁻	Ground
2	Rear door left speaker (-)	MIC (+)	⁻	⁻
3	⁻	⁻	⁻	Hazard switch input
4	⁻	⁻	⁻	Passienger seat belt reminder
5	⁻	Antenna power	⁻	⁻
6	RVM Camera : power	Illumination (+)	⁻	PAB Off
6	AVM Camera : -	Illumination (+)	⁻	PAB Off
7	RVM Camera : Video	Multmedia-CAN (High)	⁻	IGN1
7	AVM Camera : Video (Y)	Multmedia-CAN (High)	⁻	IGN1
8	RVM Camera : -	Monitor keyboard_Enable	⁻	PAB On
8	AVM Camera : Video (C)	Monitor keyboard_Enable	⁻	PAB On
9	⁻	⁻	⁻	Rear left seat belt reminder
10	AUX Right input	Battery (+)	⁻	Rear center seat belt reminder
11	AUX Detect	Battery (+)	⁻	Rear right seat belt reminder
12	Steering wheel remote controller	Ground	⁻	Hazard switch output
13	Front door left speaker (+)	Ground	⁻
14	Front door left speaker (-)	Mic Ground	⁻
15	Front door right speaker (-)	MIC (-)	⁻
16	Front door right speaker (+)	RVM Camera : -	⁻
16	Front door right speaker (+)	AVM Camera : Detect	⁻
17	⁻	⁻	⁻
18	⁻	⁻	⁻
19	⁻	Illumination (-)	⁻
20	RVM Camera : Power ground	Multmedia-CAN (Low)	⁻
20	AVM Camera : -	Multmedia-CAN (Low)	⁻
21	RVM Camera : Video ground	Display_Mute	⁻
21	AVM Camera : Video (Y) ground	Display_Mute	⁻
22	RVM Camera : -	ACC	⁻
22	AVM Camera : Video (C) ground	ACC	⁻
23	⁻	⁻	⁻
24	AUX Left input	LCD Battery	⁻
25	AUX Ground	⁻	⁻
26	Steering wheel remote controller (Ground)	⁻	⁻
27	Rear door right speaker (-)	⁻	⁻
28	Rear door right speaker (+)	⁻	⁻
29	⁻	⁻	⁻
30	⁻	⁻	⁻
31	⁻	⁻	⁻
32	RVM Camera : -	⁻	⁻
32	AVM Camera : Detect	⁻	⁻
33	RVM Camera : -	IGN1	⁻
33	AVM Camera : Video (Y) shield	IGN1	⁻
34	RVM Camera : -	⁻	⁻
34	AVM Camera : Video (C) shield	⁻	⁻
35	⁻	LCD Ground	⁻
36	⁻		⁻
37	⁻		⁻
38	Vehicle Speed		⁻

Repair procedures

Removal

•	When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.

•	Be careful to store and handle the crash pad when removing/installing because lubricant and oil can leave a stain on the trim.

1.	Disconnect the negative (-) battery terminal.

2.	Remove the heater and air conditioner control unit. (Refer to Heating, Ventilation and Air Conditioning - "Heater & A/C Control Unit (DATC)")

3.	Remove the crash pad passenger side panel. (Refer to Body - "Crash Pad Center Panel")

4.	Remove the audio head unit (A) after loosening the mounting screws.

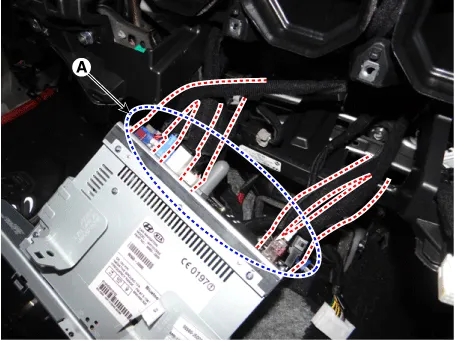

5.	Remove the audio head unit after disconnecting the connectors and antenna cable (A).

Installation

1.	Connect the audio unit connectors and antenna cable.

2.	Install the audio head unit.

3.	Install the crash pad passenger side panel.

4.	Install the heater and air conditioner control unit.

Connect the negative (-) battery terminal.

•	Make sure the connector are connected in properly.

•	Check the audio system.
