Kia Stinger CK: Body Electrical System / Audio

Kia Stinger (CK) 2018-2023 Service Manual / Body Electrical System / Audio

Contents:

Specifications

Items	Specifications
Model	Radio /MP3 /Bluetooth
Power supply	DC 14.4 V
Parasitic current	Max. 1mA (Head unit only)
Antenna	80PF 75Ω
Tuning type	PLL SYNTHESIZED TUNING

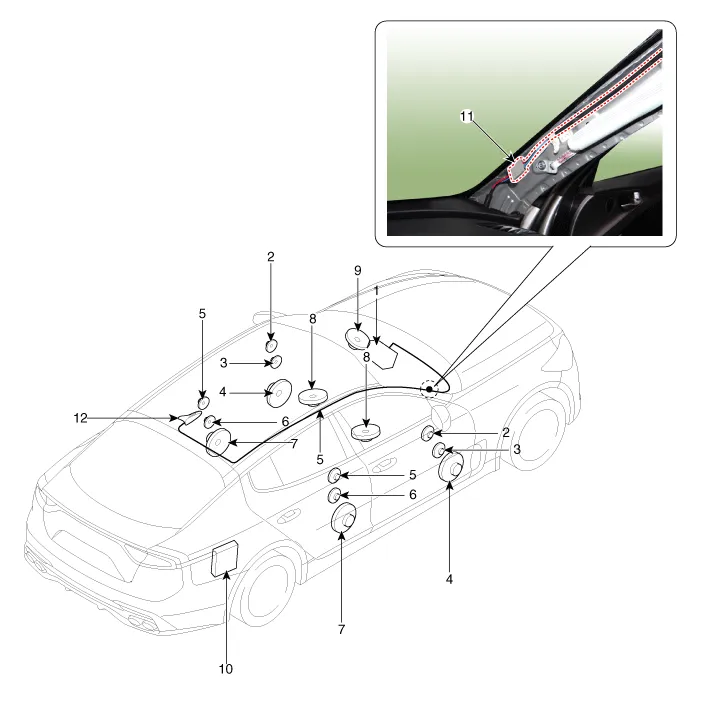

Components and components location

Component Location

1. Audio unit
2. Front tweeter speaker
3. Front mid range speaker
4. Front door speaker
5. Rear tweeter speaker
6. Rear mid range speaker

7. Rear door speaker
8. Sub woofer speaker
9. Crash pad center speaker
10. External amplifier
11. Antenna feeder cable
12. Roof antenna (AM/FM)
