Kia Stinger CK: Body Electrical System / Auto Lighting Control System

Kia Stinger (CK) 2018-2023 Service Manual / Body Electrical System / Auto Lighting Control System

Contents:

Auto Light Sensor

Specifications

Items		Specifications
Rated voltage		5V
Load		Max. 1mA (Relay load)
Illuminations (LUX)	50	0.98 ± 0.2 V
	150	1.74 ± 0.38 V

Components and components location

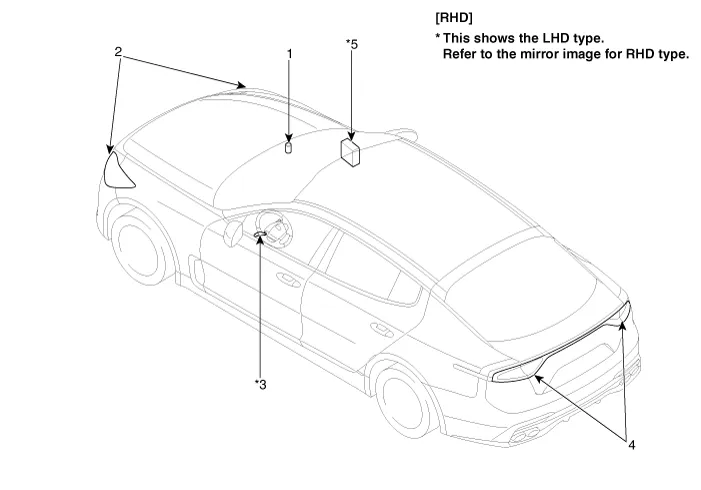

Component Location

1. Auto light sensor
2. Headlamps
3. Lighting switch (Auto)

4. Rear combination lamp
5. Integrated body control unit (IBU)

Schematic diagrams

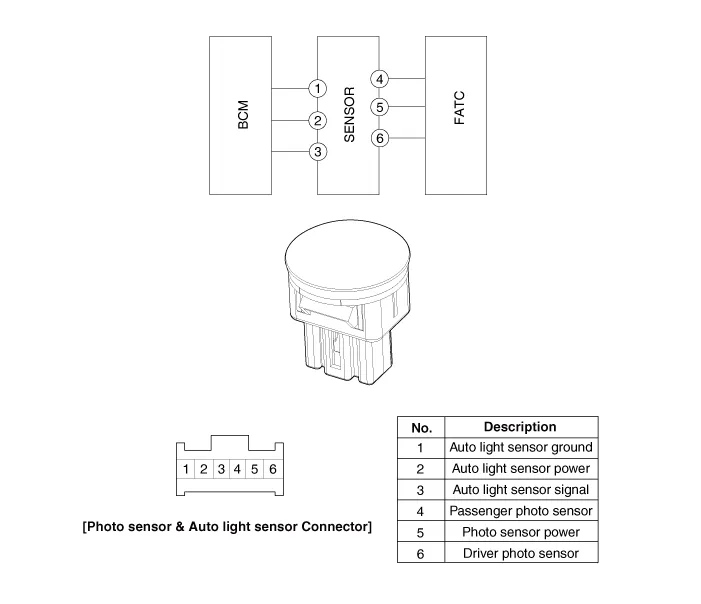

Circuit Diagram

Description and operation

Description

It's a system that uses illumination sensor to automatically turn ON the tail lamp and head lamp based on the change in surrounding environment's illumination condition. It activates when the vehicle enters/exits tunnel, or when the illumination condition in surrounding environment changes due to rain, snow, or fog. Precautions corresponding to the use of this system are as follows.

1.	Do not add another device on top of this device.

2.	Be sure to switch to manual during poor visibility climate, such as fog, heavy rain, or cloudy weather.

3.	Illumination intensity in an actual vehicle is not always constant, and lamp ON/OFF time may very depending on the climate, season, and surrounding environment.

4.	Use this system only during sunrise and sunset period, and manually control lamp ON/OFF for general conditions.

5.	Error may occur if light block coating that may change interior illumination is applied.

Auto Light Sensor

Repair procedures

Inspection

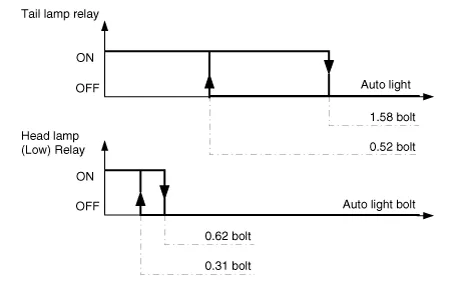

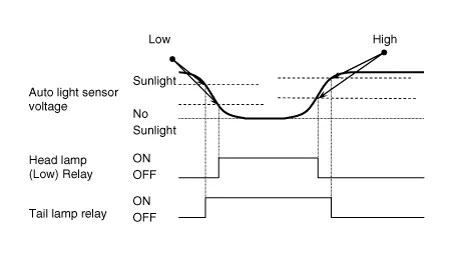

Check if the auto light control operates like a timing chart shown below. Tail lamp output and head lamp (Low) output is controlled based on the auto light sensor's input (illumination intensity) when the Auto Light Switch in Multi-Function Switch is turned ON, and the vehicle is in IGN1 or IGN2 ON Mode. If IGN1 = ON, BCM detects this voltage, and if the voltage exceeds rated voltage, then auto light failure occurs. (below 4V or above 6V)

Failure Occurrence: If auto light failure occurs, the head lamp must be turned ON regardless of sun light level. This is to prevent the head lamp from being turned OFF in case of auto light failure during night time.

In the state of IGN1 ON, when multi function switch module detects auto light switch on, tail lamp relay output and head lamp low relay output are controlled according to auto light sensor's input.The auto light control doesn't work if the pin sunlight supply (5V regulated power from Ignition 1 power to sunlight sensor) is in short circuit with the ground.If IGN1 ON, The BCM monitors the range of this supply and raises up a failure as soon as the supply’s voltage is out of range. Then this failure occurs and as long as this is present, the head lamp must be turned on without taking care about the sunlight level provided by the sensor.This is designed to prevent any head lamp cut off when the failure occurs during the night.

Removal

1.	Disconnect the negative (-) battery terminal.

2.	Using a scraper or remover, remove the crash pad center speaker grille (A).

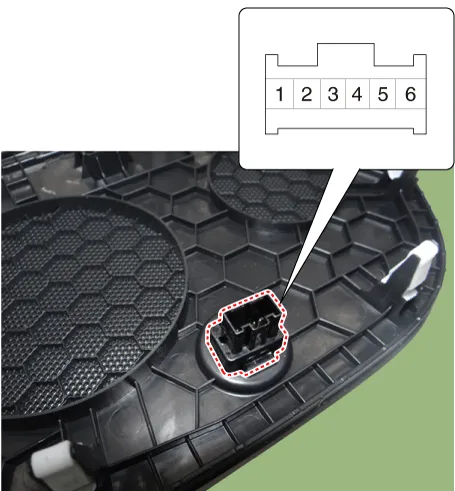

3.	Disconnect the security connector (A) and auto light & Photo sensor connector (B).

4.	Remove the auto light sensor (A) after releasing the fixed hooks.

Installation

1.	Install the auto light sensor.

2.	Connect the security connector and auto light & photo sensor connector.

3.	Install the center speaker grille.

Connect the negative (-) battery terminal.

Make sure the connector is plugged in properly.

Multimedia Jack

AVN System
