Kia Stinger CK: Interior Trim / Door Scuff Trim
Components and components location

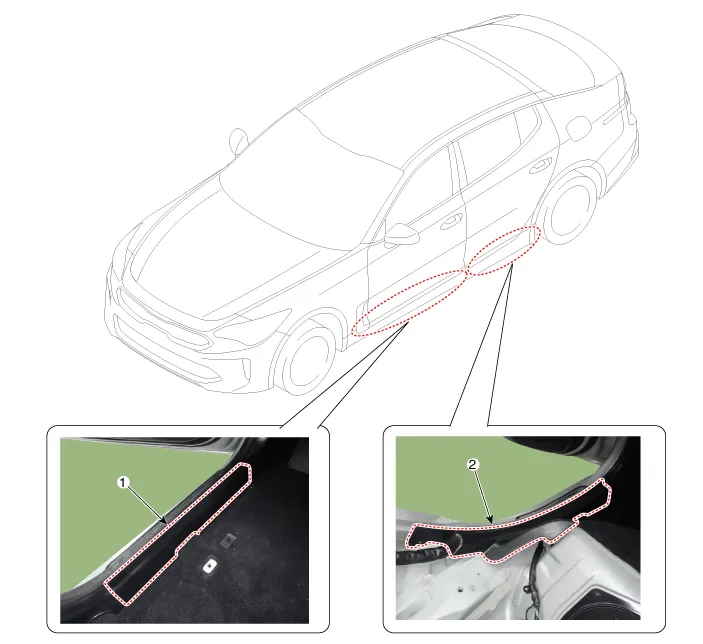

| Component Location |
| 1. Front door scuff trim |
2. Rear door scuff trim |
Repair procedures
| Replacement |
Put on gloves to protect your hands. |
|
[Front Door Scuff Trim]
| 1. |
Remove the front door scuff trim (A) by using a remover.
|
| 2. |
Install in the reverse order of removal.
|
[Rear Door Scuff Trim]
| 1. |

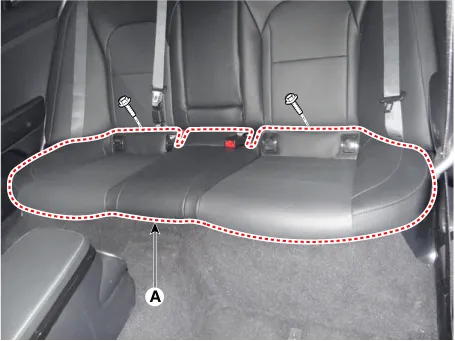

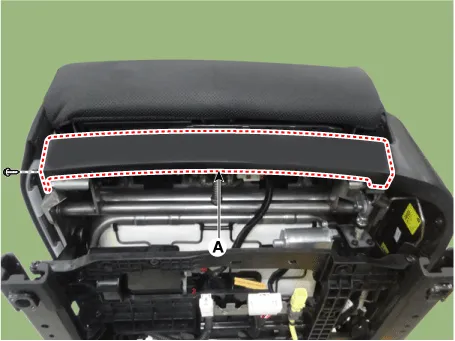

Separate the rear seat cushion (A) after loosening the mounting bolts.
|
| 2. |
Remove the rear seat cushion after disconnecting the heater connector (A).
|
| 3. |

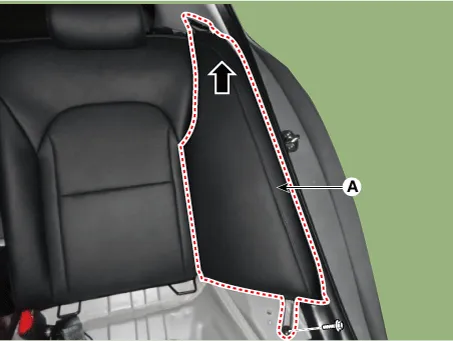

Remove the rear back side seat (A) by pulling it up after loosening the mounting bolts.
|
| 4. |

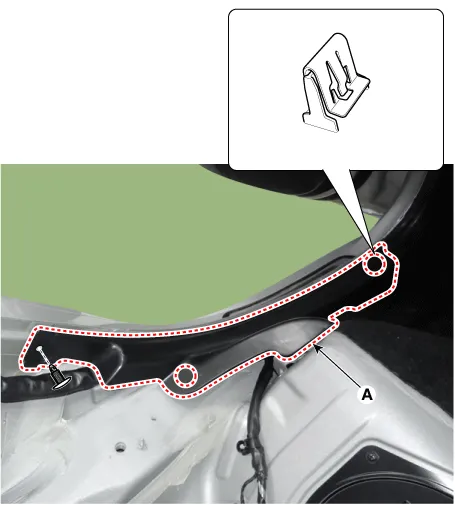

Remove the rear door scuff trim (A) after removing the mounting clip.
|
| 5. |
Install in the reverse order of removal.
|
