Kia Stinger CK: Front Seat Belt

Kia Stinger (CK) 2018-2023 Service Manual / Front Seat Belt

Contents:

Components and components location

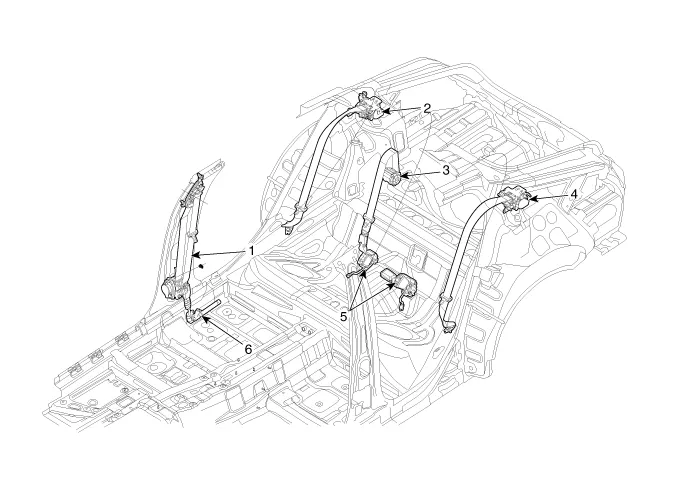

Components

1. Front seat belt retractor
2. Rear seat belt retractor [RH]
3. Rear center seat belt retractor

4. Rear seat belt retractor[LH]
5.Rear seat belt buckle
6. Emergency fastening device (EFD)


Front Seat Belt Retractor

Components and components location

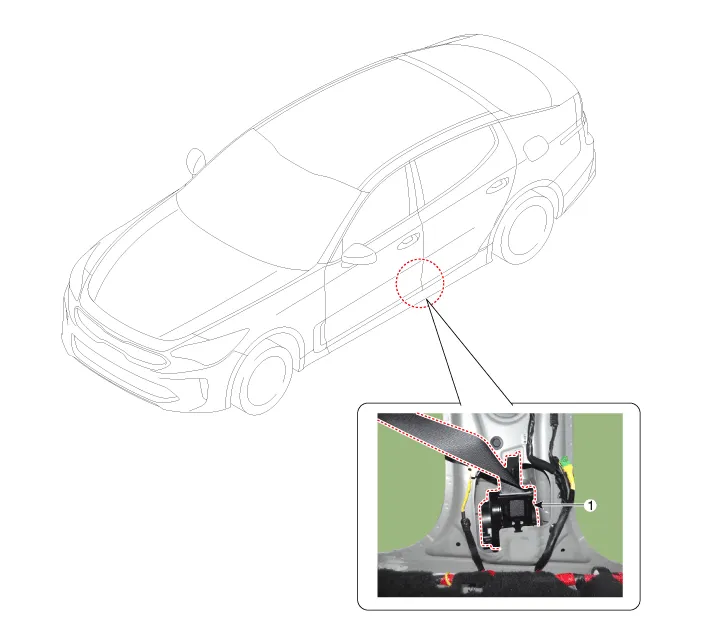

Component Location

1. Front seat belt retractor


Repair procedures
Replacement


When installing the belt, be careful not to damage the retractor.

1.

Remove the center pillar trim.

(Refer to Interior Trim - "Center Pillar Trim")

2.

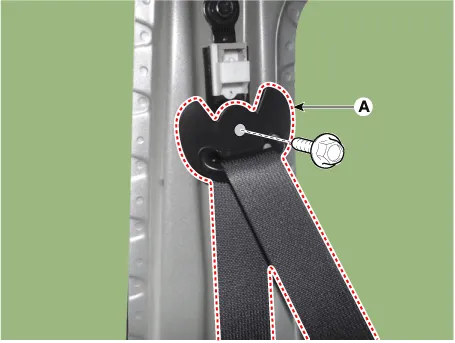

Separate the front seat belt upper anchor (A) after loosening the mounting bolt.

Tightening torque :

39.2 - 53.9 N·m (4.0 - 5.5 Kgf·m, 28.8 - 39.8 lb·ft)

3.

Disconnect the front seat belt retractor connector (A).
4.

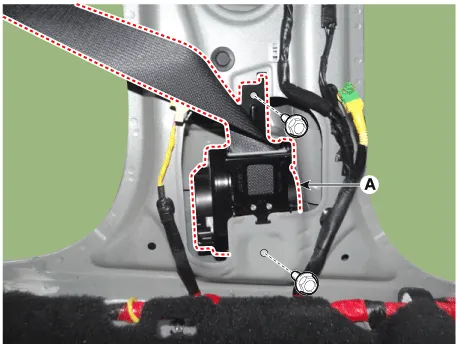

Remove the front seat belt retrator (A) after loosening the mounting bolt.

Tightening torque :

Lower : 39.2 - 53.9 N·m (4.0 - 5.5 Kgf·m, 28.8 - 39.8 lb·ft)

Upper : 7.8 - 11.8 N·m (0.8 - 1.2 Kgf·m, 5.8 - 8.7 lb·ft)

5.

Install in the reverse order of removal.


•

Make sure that the connector is plugged in properly.

•

Replace any damaged clips.

Height Adjuster

Components and components location

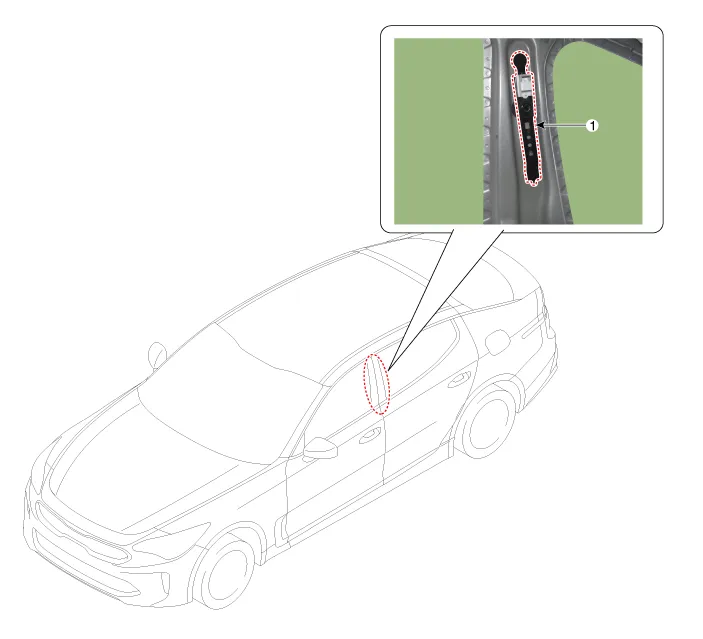

Component Location

1. Height adjuster


Repair procedures
Replacement
1.

Remove the front seat belt upper anchor.

(Refer to Front Seat Belt - "Front Seat Belt Retractor")

2.

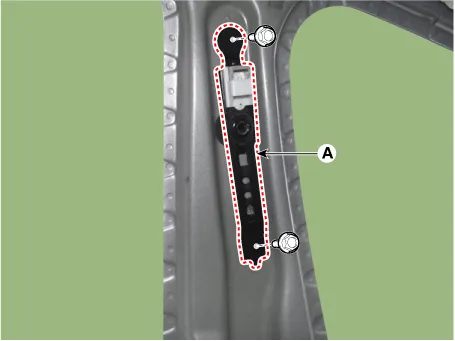

After loosening the mounting bolts, remove the height adjuster (A).

Tightening torque :

39.2 - 53.9 N·m (4.0 - 5.5Kgf·m, 28.9 - 39.8 lb·ft)

3.

Install in the reverse order of removal.



Replace any damaged clips.

Front Seat Belt Buckle

Components and components location

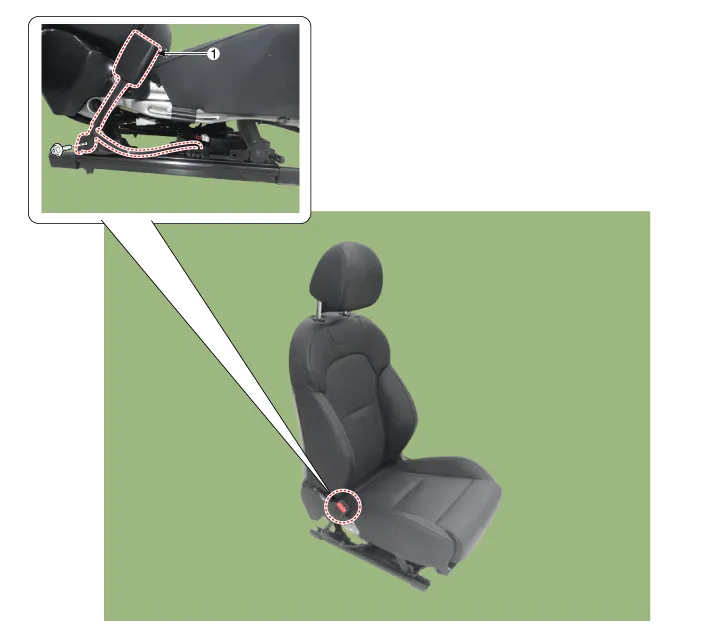

Component Location

1. Front seat belt buckle


Repair procedures
Replacement
1.

Remove the front seat assembly.

(Refer to Front Seat - "Front Seat Assembly")

2.

Remove the front seat belt buckle (A) after loosening the mounting bolt.

Tightening torque :

39.2 - 53.9 N·m (4.0 - 5.5 Kgf·m, 28.9 - 39.8 lb·ft)

3.

Install in the reverse order of removal.


•

Make sure that the connector is plugged in properly.

•

Replace any damaged clips.
