Kia Stinger CK: Front Seat Belt / Wide Sunroof
Contents:
Components and components location
| Components |
| 1. Sub frame assembly 2. Front fixed panel assembly 3. Wind deflector assembly 4. Roof side molding |
5. Roller cassette assembly
6. Mechanism rail assembly 7. Glass motor 8. Roller blind motor |
Repair procedures
| Adjustment |
Inspect Glass Alignment
| 1. |

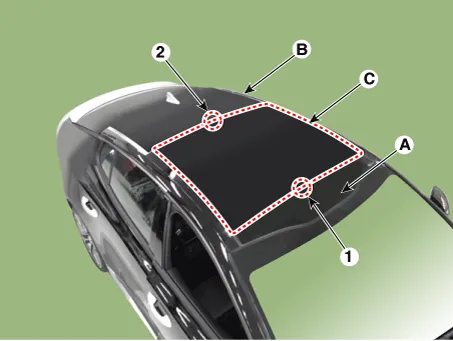

Inspect the alignment of the moving glass (C) between the front glass (A) and roof panel (B) and adjust it if needed.
|
| 2. |
Tilt the moving glass by using the wide sunroof switch.
|
| 3. |
Remove the both sides mechanism cover (A).
|
| 4. |
Adjust the height of the glass by slighty loosening the screws (A).
|
| 5. |
Completely close the moving glass using the wide sunroof switch. |
| 6. |
Install the mounting screws (A) after adjust the height of the glass. |
Emergency operation
| 1. |
Use the wide sunroof emergency operation only when the sunroof needs to be opened or closed in case of engine failure. |
| 2. |

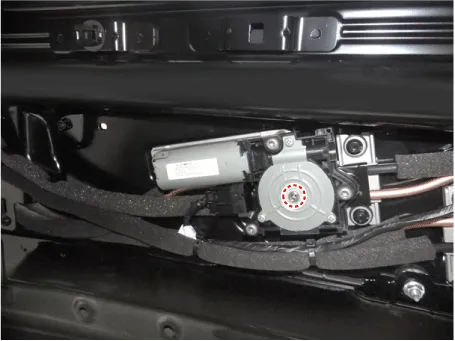

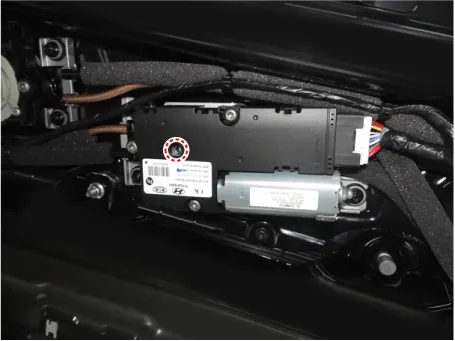

Use a hexagon wrench to open or close the wide sunroof after removing the roof trim. Do not apply too much force when opening or closing the wide sunroof. [moving glass motor ]
[roller blind motor]
|
| 3. |
If needed, reset the wide sunroof according to the reset method. (Refer to Body Electrical System - "Wide Sunroof Motor") |
Moving Glass ➤
Wide Sunroof Deflector
Repair procedures
| Replacement |
| 1. |
Completely open the moving glass using the wide sunroof switch. |
| 2. |

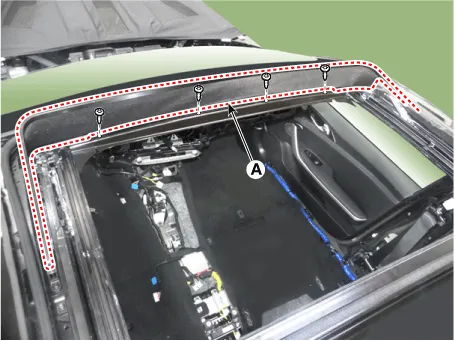

Remove the wide sunroof deflector (A) after loosening the mounting screws located on the front.
|
| 3. |
Install in the reverse order of removal. |
Wide Sunroof Assembly ➤
Roller Blind ➤
Mechanism Rail ➤
Mechanism Assembly ➤
