Kia Stinger CK: Evaporative Emission Control System / Canister
Repair procedures
| Removal |
| 1. |
Switch "OFF" the ignition and disconnect the negative (-) battery terminal. |
| 2. |
Remove the rear-left wheel & tire and wheel house cover. |
| 3. |
Remove the fuel tank air filter. (Refer to Emission Control System - Fuel Tank Air Filter") |
| 4. |

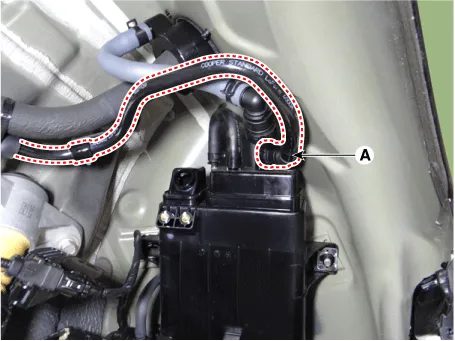

Disconnect the vapor hose quick-connector (A). |
| 5. |

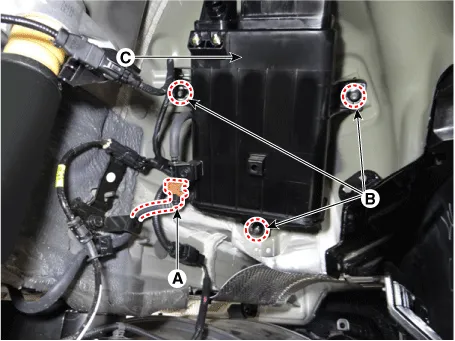

Remove the canister assembly (C) from the vehicle after removing the mounting nuts (B).
|
| Inspection |
| 1. |

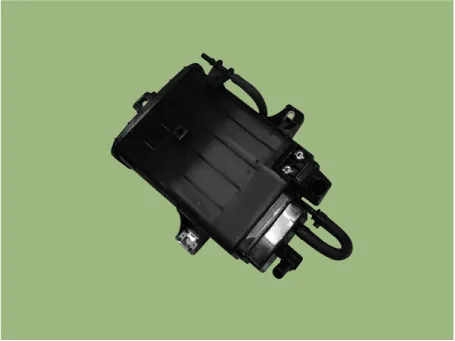

Check for the following items visually. - Cracks or leakage of the canister - Loose connection, distortion, or damage of the vapor hose/tube

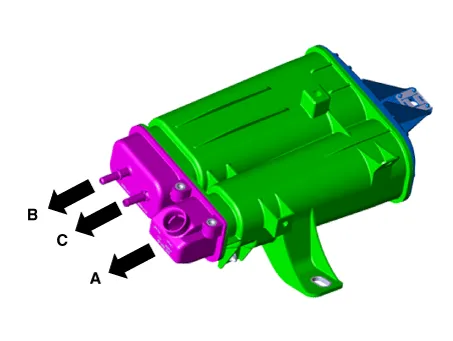

A: Canister ↔ Atmosphere B: Canister ↔ Fuel Tank C: Canister ↔ Intake Manifold |
| Installation |
| 1. |
Install in the reverse order of removal.
|
