Kia Stinger CK: Interior Trim / Rear Transverse Trim

Kia Stinger (CK) 2018-2023 Service Manual / Front Seat Belt / Interior Trim / Rear Transverse Trim

Components and components location

Component Location

1. Rear pillar trim

Repair procedures

Replacement

Put on gloves to protect your hands.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Take care not to bend or scratch the trim and panels.

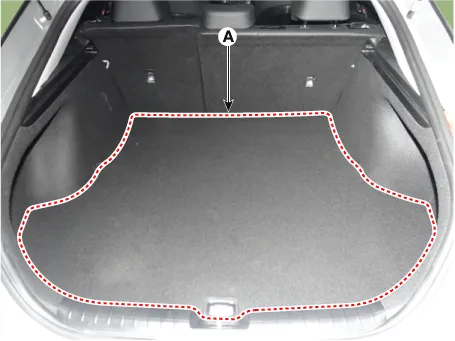

1.	Remove the luggage covering mat(A).

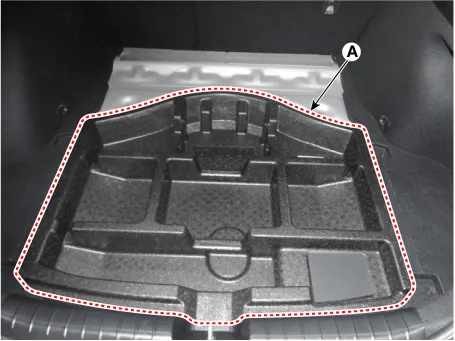

2.	Remove the center tray (A).

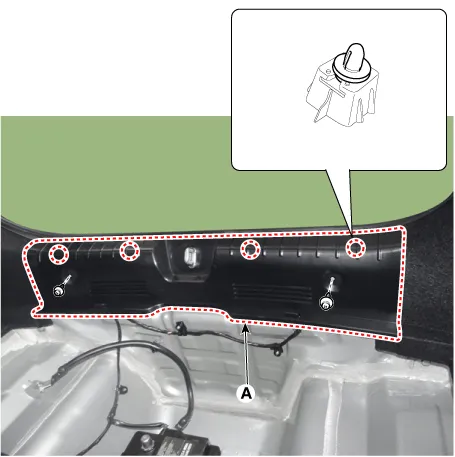

3.	Remove the rear transverse trim (A).

Install in the reverse order of removal.

Replace any damage clips.
