Kia Stinger CK: Front Seat Belt / Rear Seat

Kia Stinger (CK) 2018-2023 Service Manual / Front Seat Belt / Rear Seat

Contents:

Components and components location

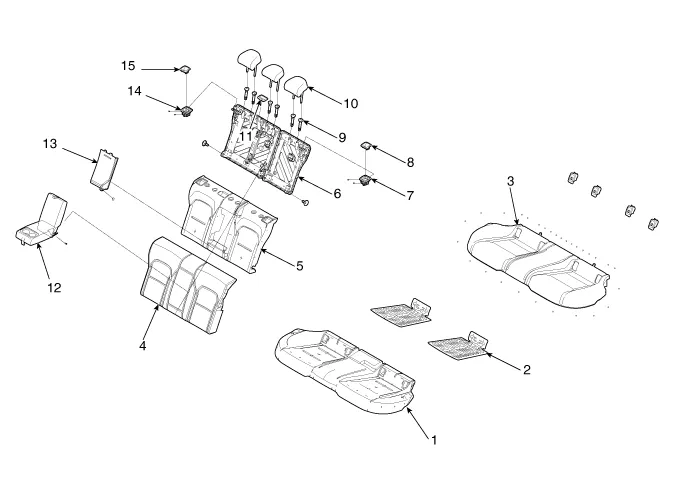

Components

1. Rear seat cushion pad
2. Rear seat cushion heater
3. Rear seat cushion covering
4. Rear seat back covering
5. Rear seat back pad
6. Rear seat back frame back panel
7. Rear seat back folding knob [LH]
8. Rear seat back folding knob cover [LH]
9. Rear seat headrest guide
10. Rear seat headrest
11. Rear seat center belt cover
12. Rear seat armrest
13. Rear seat armrest back board
14. Rear seat back folding knob [RH]
15. Rear seat back folding knob cover [RH]

Rear Seat Assembly ➤

Rear Seat Back Cover ➤

Rear Seat Cushion Cover

Components and components location

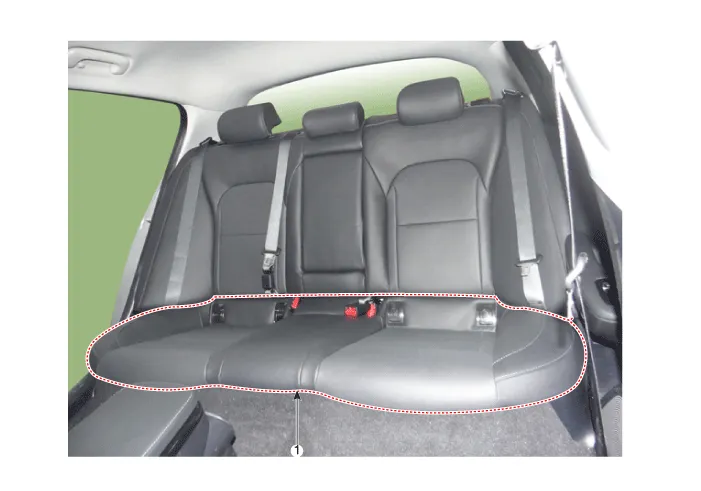

Component Location

1. Rear seat cushion cover


Rear Back Armrest ➤

Rear Door Latch

Rear Seat Assembly
