Repair procedures
Adjustment
1.

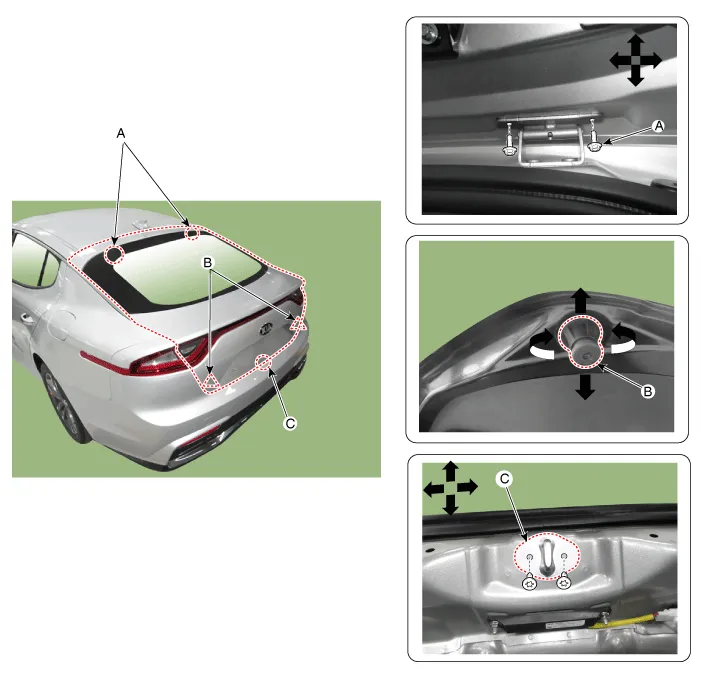

After loosening the tailgate hinge (A) mounting bolts, adjust the tailgate by moving it up and down, or right and left.

2.

Adjust the tailgate height by turning the tailgate overslam bumpers (B).

3.

After loosening the tailgate striker (C) mounting bolts, adjust the tailgate striker by moving it up and down, or right and left.

Tail Gate Assembly ➤

Tail Gate Trim ➤

Tail Gate Latch ➤

Tail Gate Lift ➤

Tail Gate Back Panel ➤

Tail Gate Weatherstrip

Repair procedures
Replacement


Do not apply sealant to the body.

1.

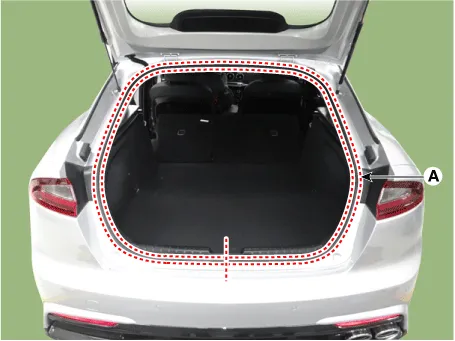

Remove the tailgate weatherstrip (A).

2.

Install in the reverse order of removal.



Install the weatherstrip aligned with center line .
