Kia Stinger CK: Tail Gate / Tail Gate Back Panel

Kia Stinger (CK) 2018-2023 Service Manual / Front Seat Belt / Tail Gate / Tail Gate Back Panel

Repair procedures

Replacement

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Take care not to bend or scratch the trim and panels.

1.	Remove the tailgate trim. (Refer to tailgate - "tailgate Trim")

2.	Disconnect the rear combination lamp connector [inside] (A).

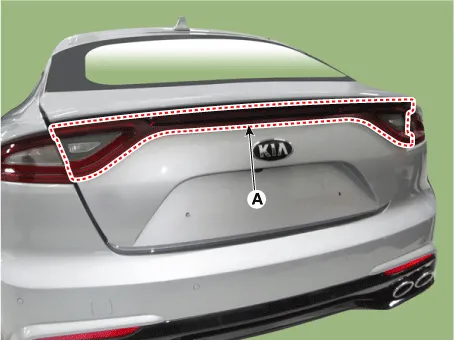

3.	Remove the rear combination lamp [inside] (A) after loosening the mounting nuts.

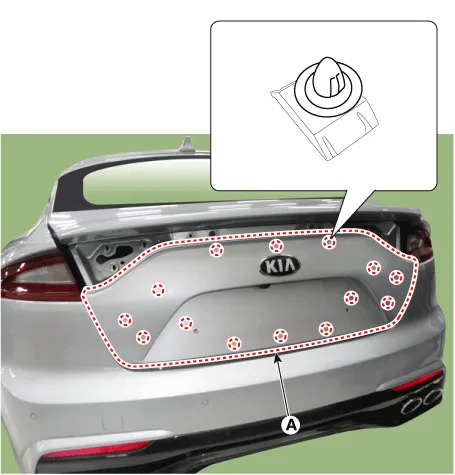

4.	Remove the tailgate back panel (A) by using a remover.

Install in the reverse order of removal.

•	Make sure that the connector is connected properly.

•	Replace any damage clips.
