Kia Stinger CK: Tail Gate / Tail Gate Lift

Kia Stinger (CK) 2018-2023 Service Manual / Front Seat Belt / Tail Gate / Tail Gate Lift

Repair procedures

Replacement

Do not apply sealant to the body.

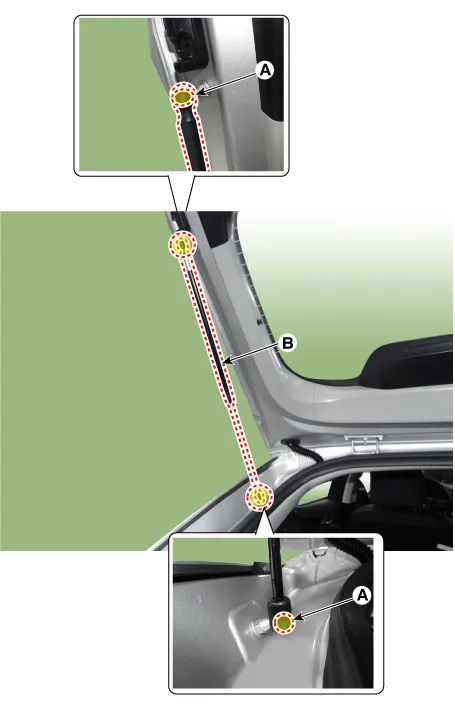

1.	Using a screwdriver, remove the tailgate lifter (B) after removing the socket clips (A).

Push the socket of the lifter into the bracket for installation.

Make sure the tailgate locks and opens properly and locks securely.
