Rear Differential Carrier

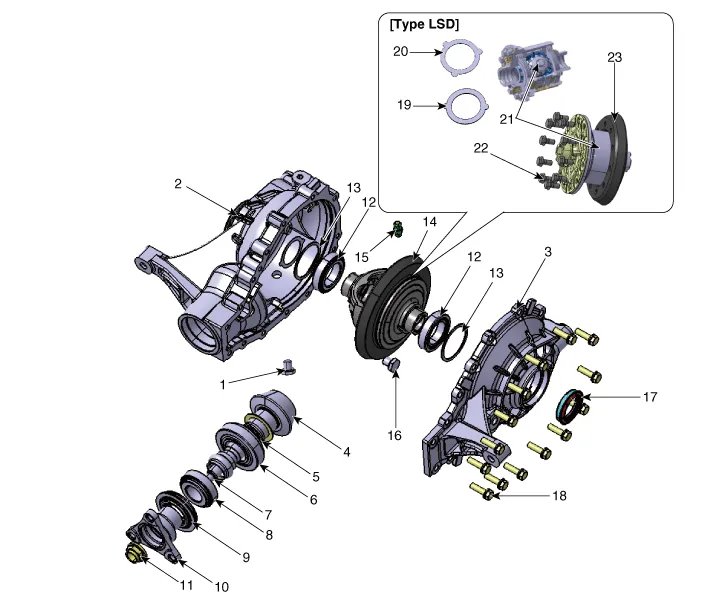

Components and components location
| Component |
| 1. Drain plug 2. Differential case 3. Differential cover 4. Pinion drive gear 5. Pinion drive gear adjustment shim 6. Pinion rear bearing 7. Pinion bearing spacer 8. Pinion front bearing |
9. Pinion oil seal 10. Companion flange 11. Pinion lock nut 12. Differential side bearing 13. Differential side bearing spacer 14. Differential case assembly 15. Air breather 16. Filler plug |
17. Side oil seal 18. Differential case cover bolts 19. Oil guide spacer (RH) 20. Oil guide spacer (LH) 21. LSD 22. Differential case assembly bolts 23. Drive gear |
