Kia Stinger CK: Body Side Molding / Fender Garnish

Kia Stinger (CK) 2018-2023 Service Manual / Body (Interior and Exterior) / Body Side Molding / Fender Garnish

Repair procedures

Replacement

Put on gloves to protect your hands.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Take care not to bend or scratch the trim and panels.

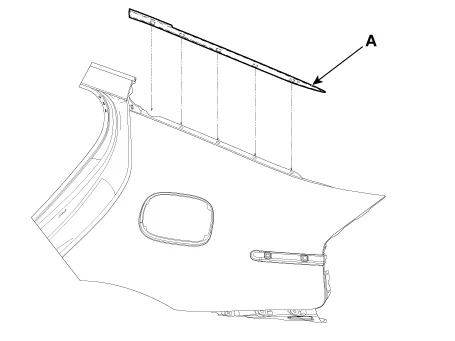

Remove the fender garnish (A) by using a remover.

Replace the fender garnish with a new one.

Install in the reverse order of removal.

Replace any damaged clips.
