Kia Stinger CK: Body Side Molding / Rear Spoiler

Kia Stinger (CK) 2018-2023 Service Manual / Body (Interior and Exterior) / Body Side Molding / Rear Spoiler

Repair procedures
Replacement


Put on gloves to protect your hands.

•

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
•

Take care not to bend or scratch the trim and panels.

1.

Remove the tail gate trim.

(Refer to Tail Gate - "Tail Gate Trim")

2.

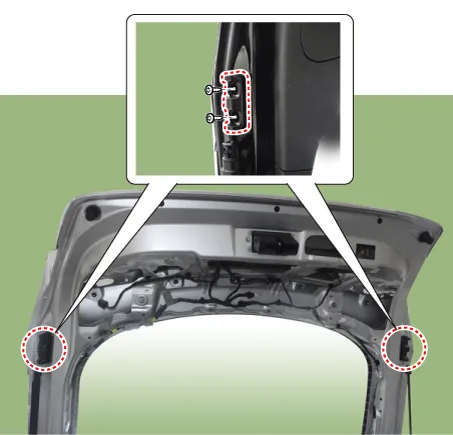

Remove the tail gate lever bumper (A) after loosening the mounting screw.
3.

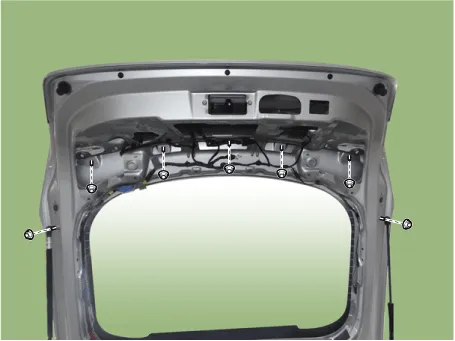

Loosen the rear spoiler mounting nuts.

Tightening torque :

5.9 - 6.4 N·m (0.6 - 0.65 Kgf·m, 4.3 - 4.7 lb·ft)

4.

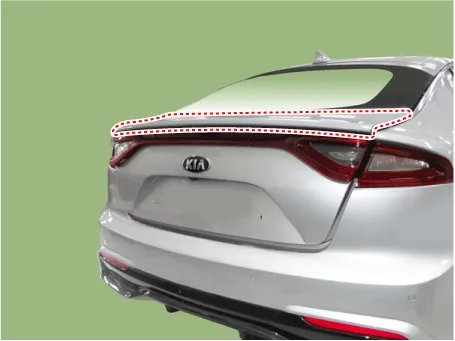

Remove the rear spoiler (A).
5.

Install in the reverse order of removal.



Replace any damaged clips.
