Kia Stinger CK: Restraint / Active hood lift system

Kia Stinger (CK) 2018-2023 Service Manual / Restraint / Active hood lift system

Contents:

Description and operation

Description

The system reduces injury of pedestrians by lifting the hood when a accident occurs between the pedestrian and vehicle.

It may prevent a secondary impact between the pedestrian's head and engine components.

Components and components location

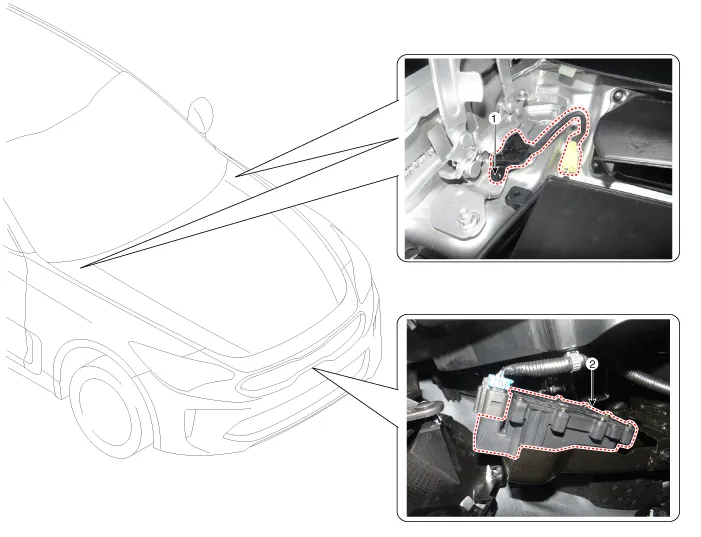

Components Location

1. Active hood actuator

2. Active hood unit

Active hood sensor & unit assembly ➤

Active hood actuator assembly ➤

Emergency Fastening Device (EFD)

Active hood sensor & unit assembly
