Kia Stinger CK: Active hood lift system / Active hood sensor & unit assembly
Kia Stinger (CK) 2018-2023 Service Manual / Restraint / Active hood lift system / Active hood sensor & unit assembly
Repair procedures
| Replacement |
| 1. |
Disconnect the negative battery terminal.
|
| 2. |
Remove the front bumper assembly. (Refer to Body - "Front Bumper Assembly") |
| 3. |

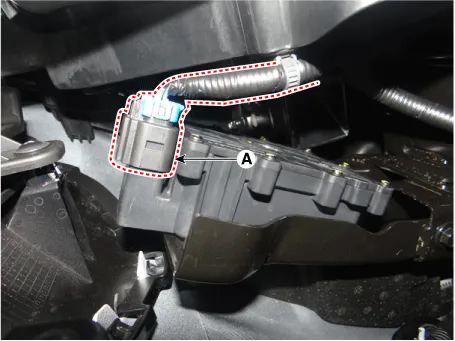

Disconnect the active hood unit connector (A).
|
| 4. |

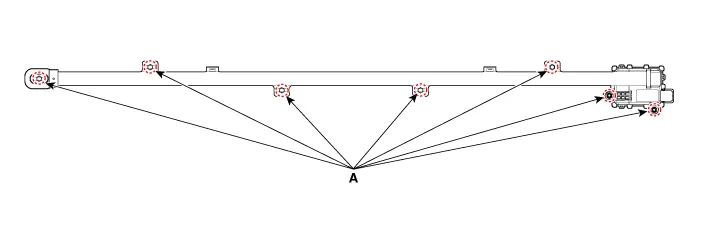

Remove the active hood unit by loosening the bolts (A).
|
| 5. |
Install in the reverse order of removal. |
