Kia Stinger CK: Active hood lift system / Active hood actuator assembly

Kia Stinger (CK) 2018-2023 Service Manual / Restraint / Active hood lift system / Active hood actuator assembly

Repair procedures

Replacement

Disconnect the negative battery terminal.

After disconnecting the cables, wait at least 30 seconds.

2.	Remove the cowl top cover. (Refer to Body - "Cowl Top Cover")

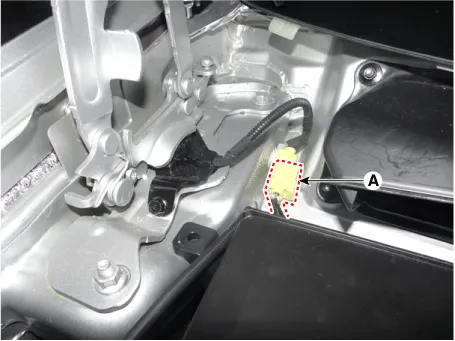

3.	Disconnect the active hood actuator connector (A).

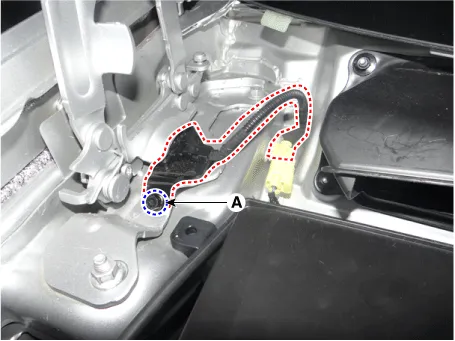

4.	Remove the active hood actuator by loosening the bolt (A).

5.	Install in the reverse order of removal.
