Kia Stinger CK: Fuel Filler Door / Fuel Filler Door Release Actuator
Repair procedures
| Removal |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |
Remove the luggage side trim [LH]. (Refer to Body - "Luggage Side Trim") |
| 3. |

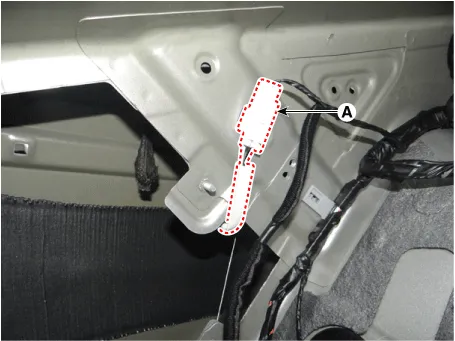

Disconnect the fuel filler door release actuator connector (A).
|
| 4. |

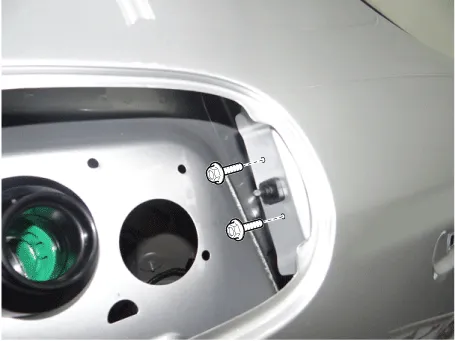

Remove the fuel filler door housing. (Refer to Body - "Fuel Filler Door") |
| 5. |

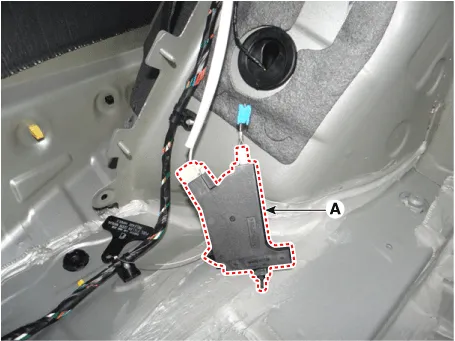

Remove the fuel filler door release actuator (A) after loosening the mounting bolts.
|
| Installation |
| 1. |
Install the fuel filler door release actuator. |
| 2. |
Install the fuel filler door housing. |
| 3. |
Connect the fuel filler door release actuator connector. |
| 4. |
Install the luggage side trim [LH]. |
| 5. |
Connect the negative (-) battery terminal. |
| Inspection |
| 1. |

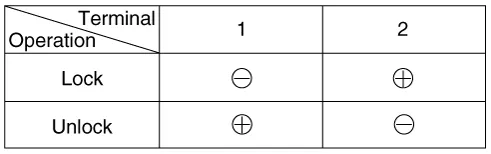

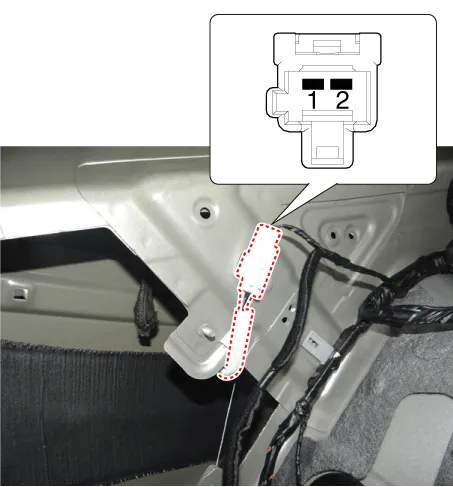

Check for continuity between terminals No. 1 and No. 2. If there is no continuity, replace the fuel filler door release actuator.
|
