Kia Stinger CK: Seat Electrical / Lumbar Support Unit
Repair procedures
| Removal |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |
Remove the front seat back cover. (Refer to Body - "Front Seat Back Cover") |
| 3. |

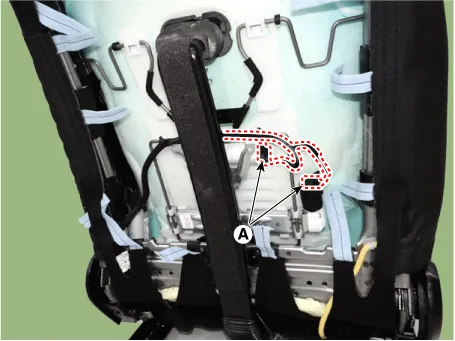

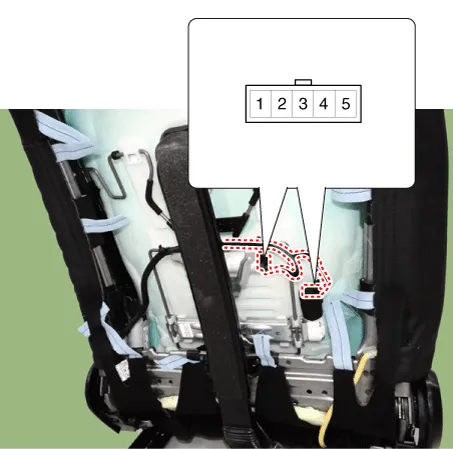

Disconnect the lumbar support motor connectors (A).
|
| 4. |

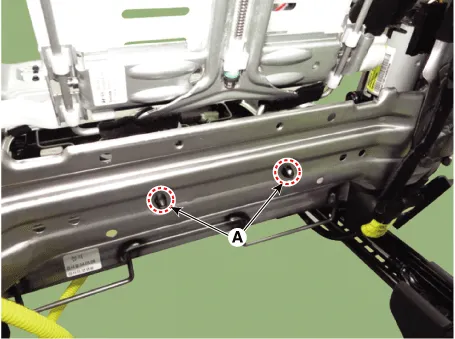

Separate the retaining clips (A) from the seat frame.
|
| 5. |

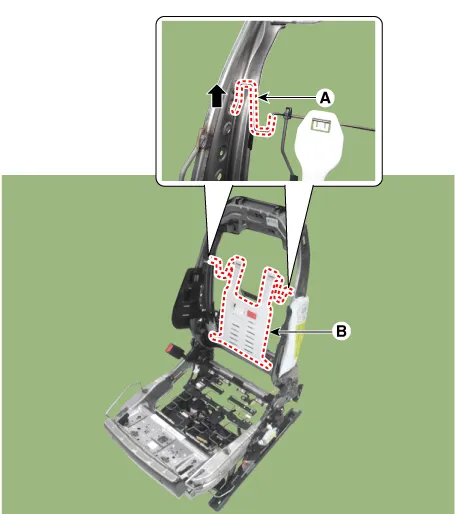

Remove the lumbar support assembly (B) after disengaging mounting clip (A).
|
| Installation |
| 1. |
Install the lumbar support assembly. |
| 2. |
Install the front seat back cover. |
| 3. |
Install the front seat assembly.
|
| Inspection |
Lumbar Support Motor
| 1. |
Disconnect the connectors for motor.
|
| 2. |

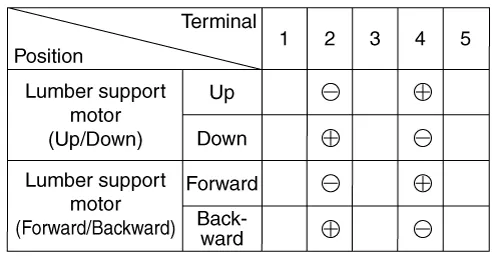

When the battery power is supplied to the motor connector, check the motor for smooth operation. |
| 3. |
Reverse the connections and check that the motor turns in reverse. |
| 4. |
If the motor runs abnormally, replace it.
|
