Kia Stinger CK: Air bag - advanced supplemental restraint system / Occupant Detection System (ODS)

Kia Stinger (CK) 2018-2023 Owner's Manual / Safety features of your vehicle / Air bag - advanced supplemental restraint system / Occupant Detection System (ODS)

Contents:

Your vehicle is equipped with an occupant detection system in the front passenger's seat.

The occupant detection system is designed to detect the presence of a properly-seated front passenger and determine if the passenger's front air bag should be enabled (may inflate) or not. Only the front passenger front air bag is controlled by the Occupant Detection System.

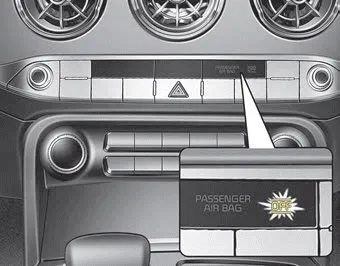

Do not put anything in front of the passenger air bag OFF indicator.

Main components of the occupant detection system ➤

Condition and operation in the front passenger occupant detection system ➤

SRS components and functions

Main components of the occupant detection system
