Kia Stinger CK: Power Tailgate System / Power Tailgate Latch
Kia Stinger (CK) 2018-2023 Service Manual / Body Electrical System / Power Tailgate System / Power Tailgate Latch
Repair procedures
| Removal |
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |
Remove the tailgate trim. (Refer to Body - "Tailgate Trim") |
| 3. |

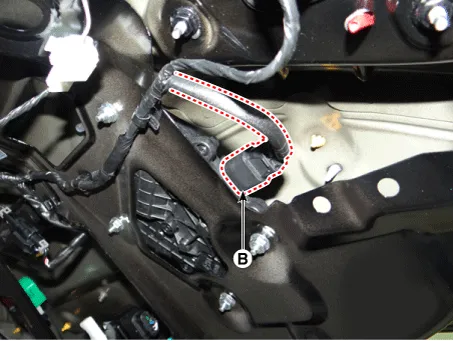

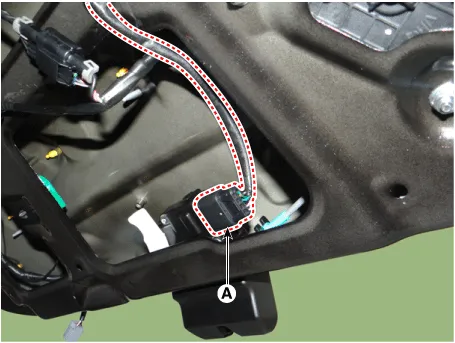

Disconnect the power tailgate latch connector (A) and power closing unit connector (B).
|
| 4. |

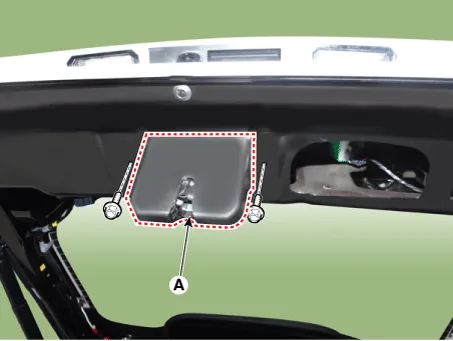

Loosen the power tailgate latch (A) mounting bolts.
|
| 5. |

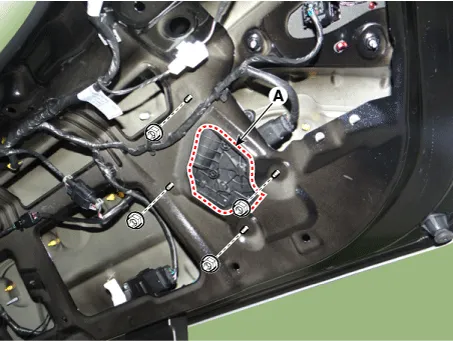

Loosen the power closing unit (A) mounting nuts.
|
| 6. |

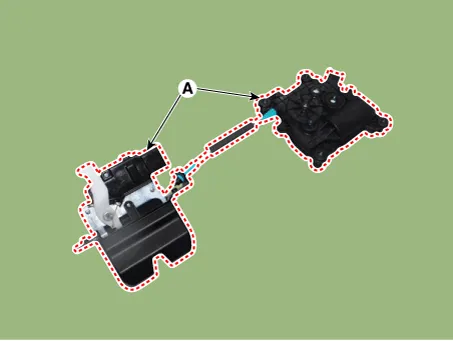

Remove the power tailgate latch & power closing unit (A).
|
| Installation |
| 1. |
Install the power tailgate latch and power closing unit. |
| 2. |
Connect the power tailgate latch and power closing unit connector. |
| 3. |
Install the tailgate trim. |
| 4. |
Connect the negative (-) battery terminal. |
| Inspection |
Inspection of the Power Tailgate Latch
Refer to Power Tailgate System - "Troubleshooting"
