Components and components location

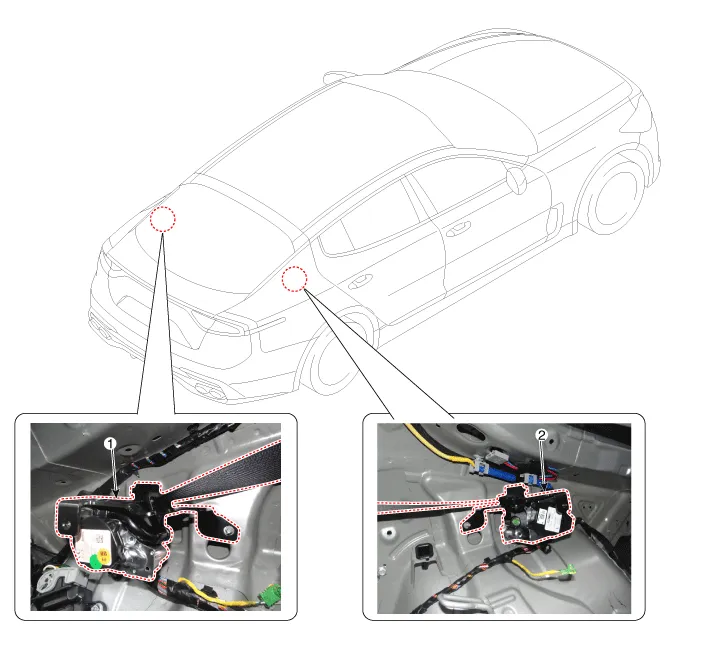

Component Location

1. Rear seat belt retractor [LH]

2. Rear seat belt retractor [RH]

Repair procedures

Replacement

When installing the belt, be careful not to damage the retractor.

1.	Remove the rear pillar trim. (Refer to Interior Trim - "Rear Pillar Trim")

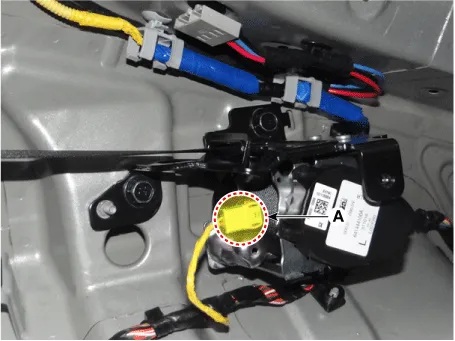

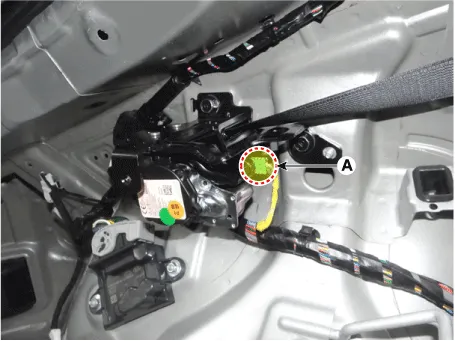

2.	Disconnect the rear seat belt retractor connector (A). [LH] [RH]

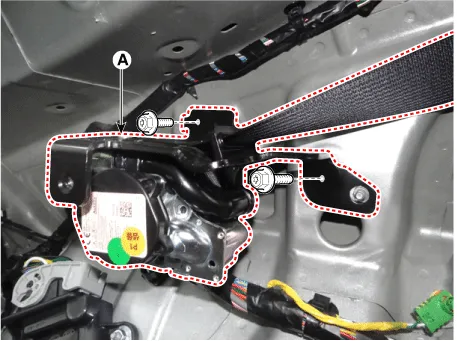

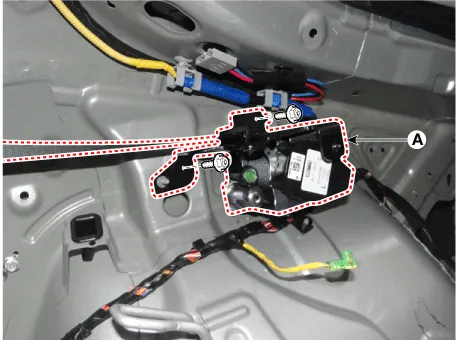

Remove the rear seat belt retractor (A) after loosening the mounting bolts.

Tightening torque :

39.2 - 53.9 N·m (4.0 - 5.5 Kgf·m, 28.8 - 39.8 lb·ft)

[LH]

[RH]

Install in the reverse order of removal.

•	Replace any damaged clips.

•	Make sure that the connector is connected preperly.
