Kia Stinger CK: Steering System / Steering wheel

Kia Stinger (CK) 2018-2023 Service Manual / Steering System / Steering wheel

Contents:

Components and components location

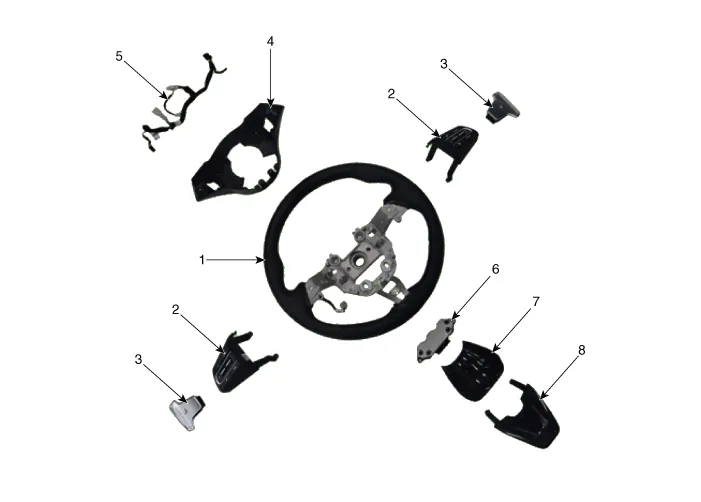

Components

1. Steering wheel body
2. Remote control switch
3. Paddle shift
4. Lower cover
5. Wiring
6. Damper
7. Upper cover
8. Upper cover

Repair procedures
Removal
1.

Disconnect the battery negative cable from the battery and then wait for at least 30 seconds.

2.

Turn the steering wheel so that the front wheels are facing straight ahead.

3.

Remove the driver airbag.

(Refer to Restraint - "Driver Airbag (DAB) Module and Clock Spring")

4.

Disconnect the steering wheel connector.
5.

Loosen the steering wheel bolt and then remove the steering wheel.

Tightening torque :

44.1 - 49.0 N·m (4.5 - 5.0 kgf·m, 32.5 - 36.2 lb·ft)


•

Do not hammer on the steering wheel to remove it; it may damage the steering column.
•

Do not reuse the bolt.

6.

Install in the reverse order of removal.
Disassembly
1.

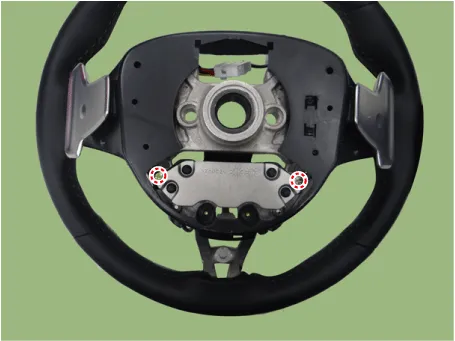

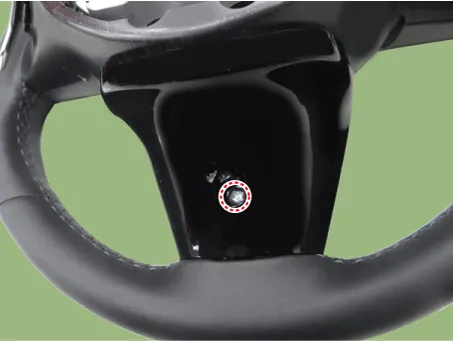

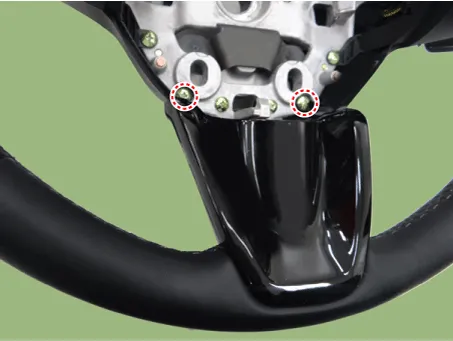

Loosen the screw and then remove the upper cover.
2.

Loosen the damper screw and then remove the damper.
3.

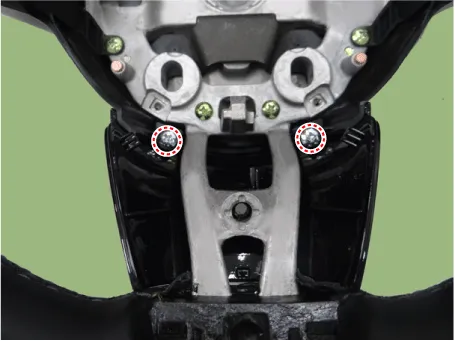

Loosen the paddle shift screw.
4.

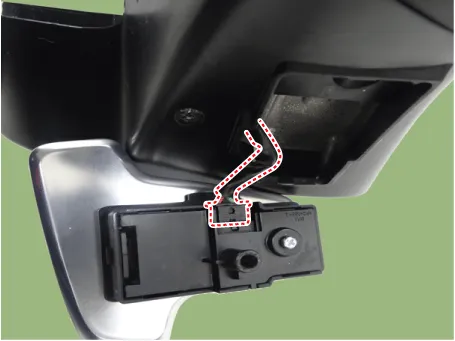

Using the driver, disconnect the paddle shift connector.
5.

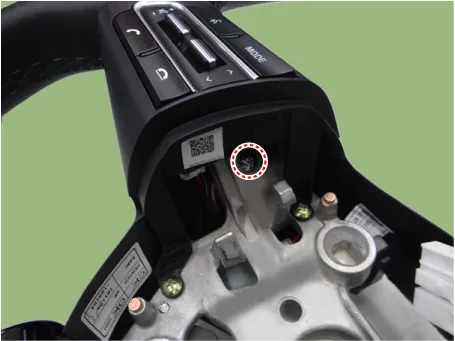

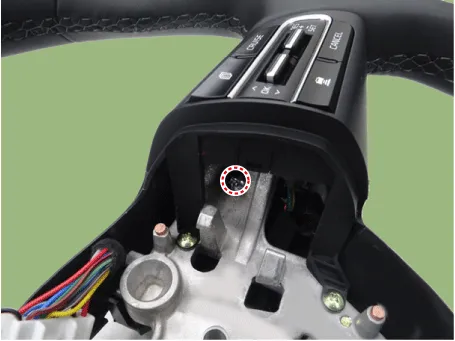

Loosen the remote control switch screw and then separate the remote control switch.
6.

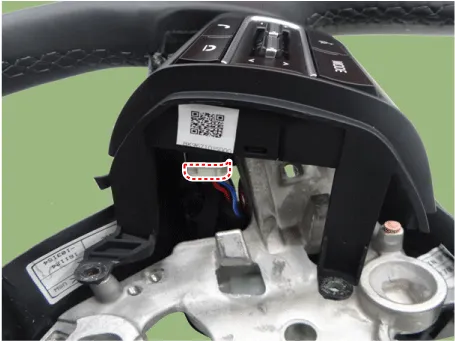

Disconnect the remote control switch connector and then remove the remote control switch & lower cover.
7.

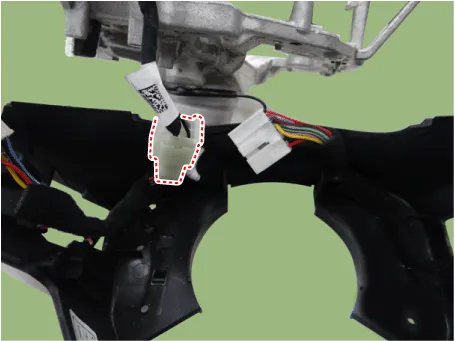

Disconnect the connector and then remove the steering wheel body.
8.

Install in the reverse order of removal.

Heated Steering wheel

Description and operation
Description

When manually selected, the heated steering wheel system improves the thermal comfort of the driver by heating the steering wheel.

1.

Integrated Body Control Unit (IBU)

Item
Specification
Voltage
13.5 V
Heated pad resistance
1.95 Ω ± 0.2Ω
NTC resistance
10.0 kΩ  ± 3% (22°C ±1°C)

Schematic diagrams

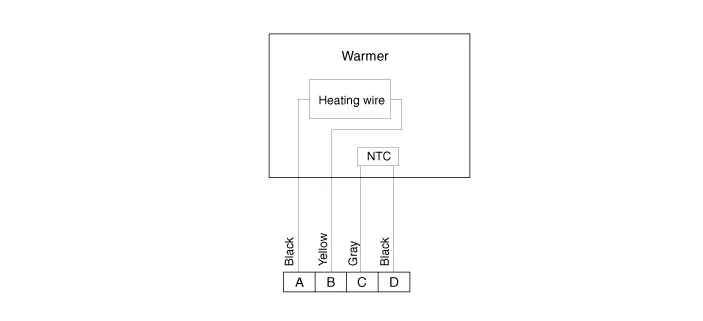

Circuit Diagram

Terminal Function

Housing
Pin
Function
Wire color
Pad
A
GND
Black
B
HEATER
Yellow
C
NTC+
Gray
D
NTC¯
Black

Repair procedures
Inspection
NTC characteristic
1.

Measure the resistance of NTC and Heated pad.

NTC resistance - 8.875 - 11.27 kΩ (25°C ±1°C)

Heated pad resistance - 1.95 ± 0.2 Ω (22°C ±1°C)

2.

Measure the temperature.

–

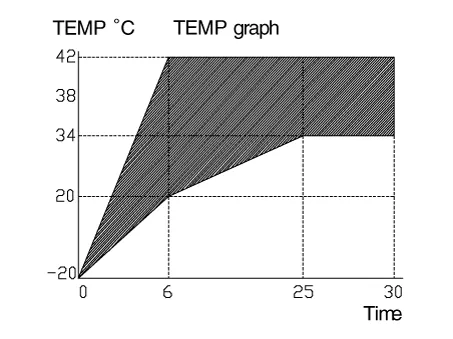

The temperature of wheel surface must rise from -20°C to 20°C in 6 minutes.

–

The temperature of wheel surface must reach 38°C in 25 minutes.

Specifications

Electric Power Steering
