Kia Stinger: Seat Electrical / Power Seat Control Switch

Kia Stinger CK 2018-2025 Service Manual / Body Electrical System / Seat Electrical / Power Seat Control Switch

Repair procedures

Inspection

Diagnosis With KDS

The body electrical system can be quickly diagnosed for failed parts by using the vehicle diagnostic system (KDS).

The diagnostic system (KDS) provides the following information.

(1)	Self diagnosis : Checks and displays the failure code (DTC).

(2)	Current data : Checks the system input/output data state.

(3)	Actuator test : Checks the system operating condition.

(4)	Additional function : Other controls such as the system option and zero point adjustment.

2.	Select the 'Car model' and the system to be checked in order to check the vehicle with the tester.

3.	Select the 'Power seat module (PSM)' to check the power seat module (PSM).

4.	Select the 'Current data' menu to check the current state of the input/output data. The input/output data for the sensors corresponding to the power seat module (PSM) can be checked.

Seat Control Switch

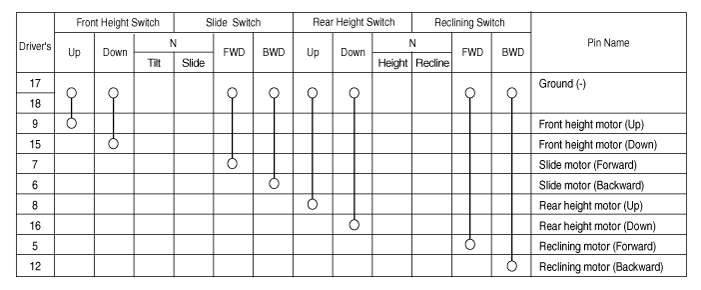

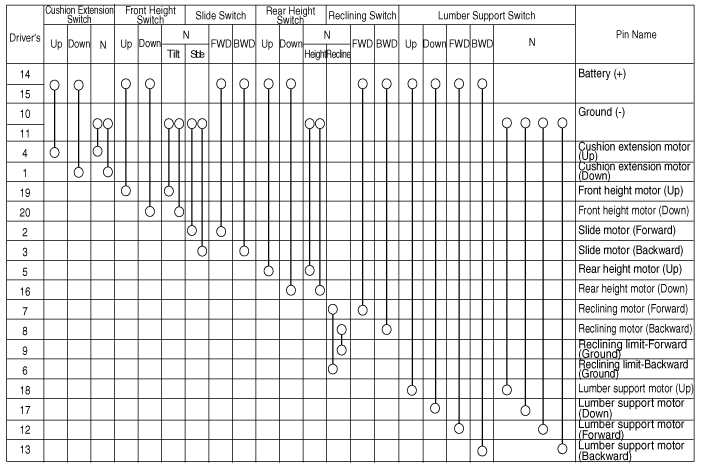

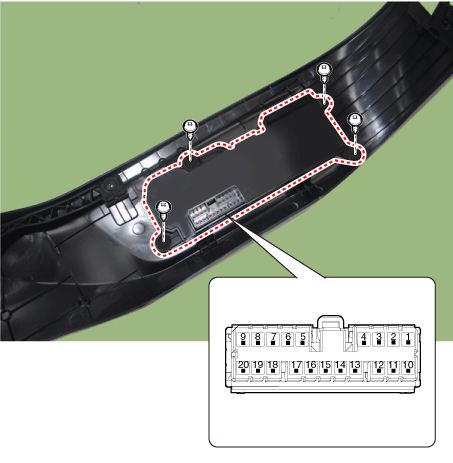

1.	With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch.

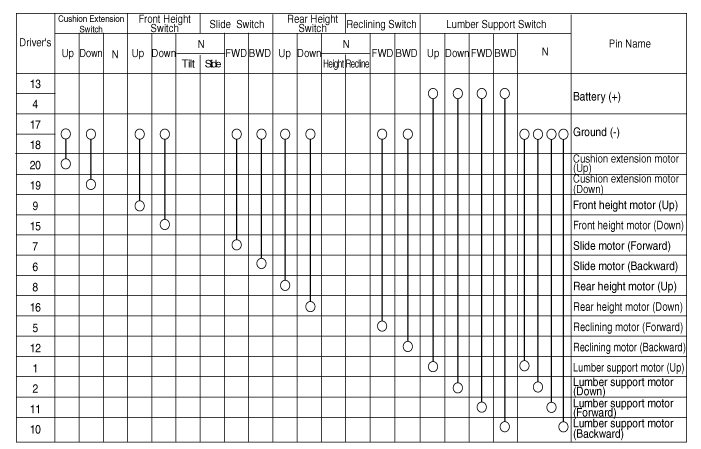

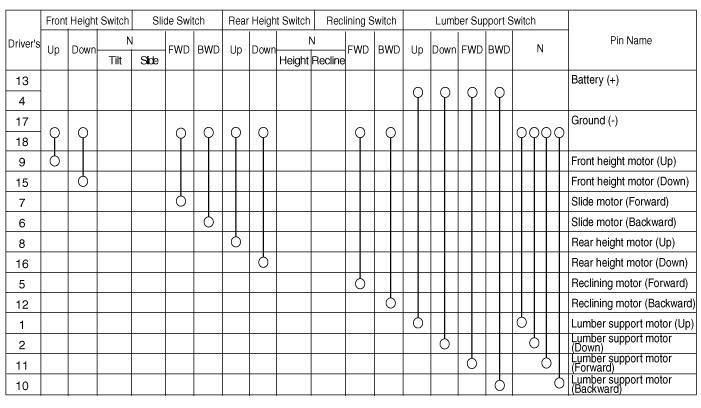

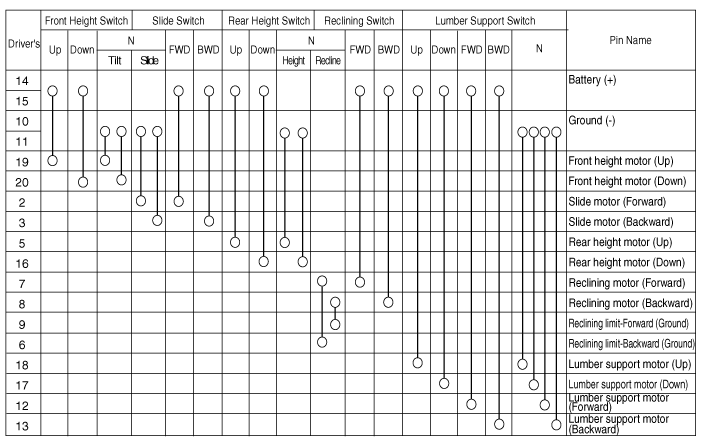

Driver's Seat / IMS Type

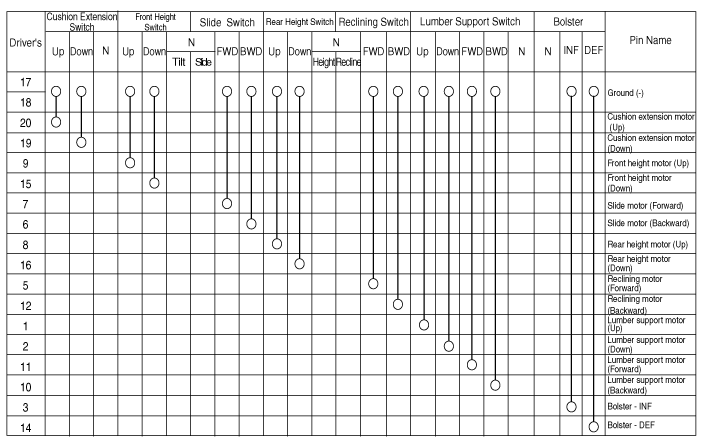

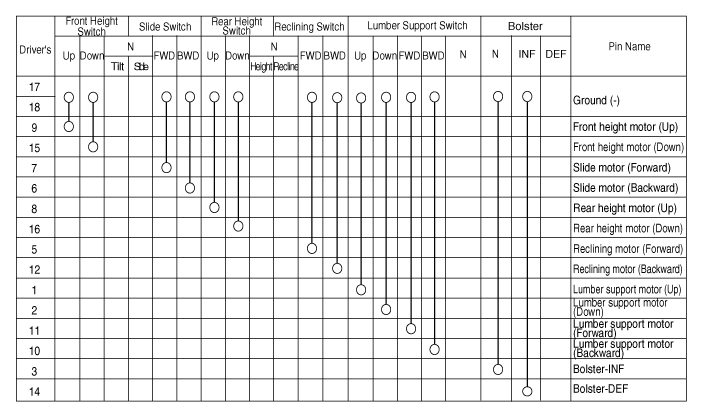

[16Way (EXT + Bolster) Type]

[14Way (EXT) Type]

[14Way (SLB) Type]

[12Way Type]

[8Way Type]

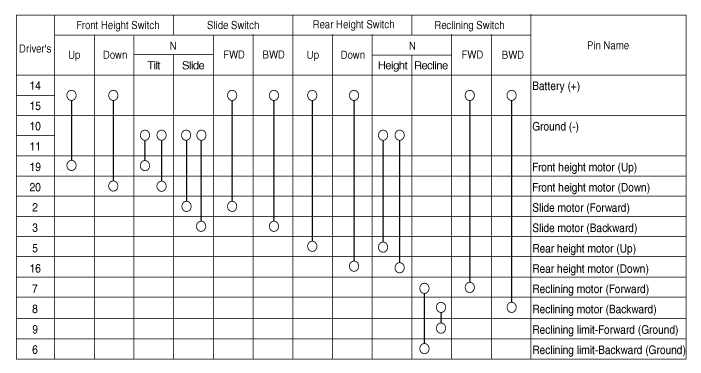

Driver's Seat / Non-IMS Type

[14Way (EXT) Type]

[12Way Type]

[8Way Type]

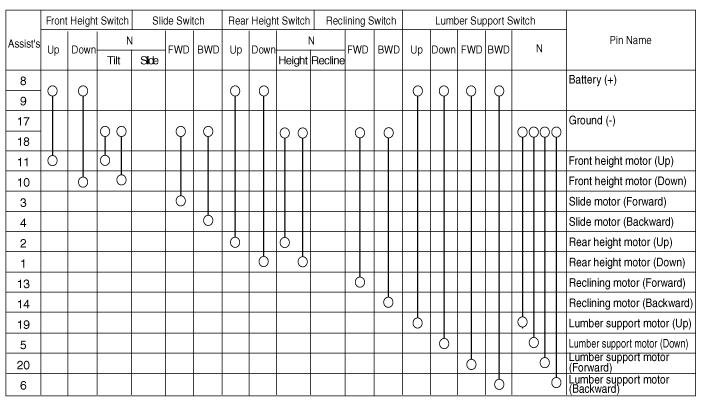

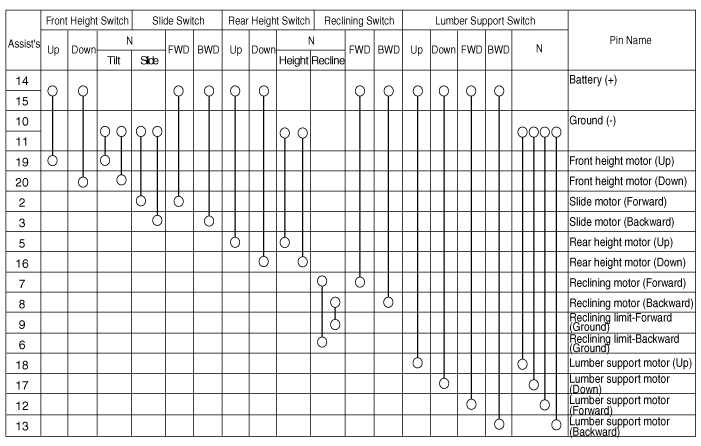

Assist's Seat / Non-IMS Type

[12Way (Walk-In) Type]

[12Way Type]

[8Way Type]

Removal

1.	Disconnect the negative (-) battery terminal.

2.	Remove the front seat outer shield cover. (Refer to Body - "Front Seat Outer Shield Cover")

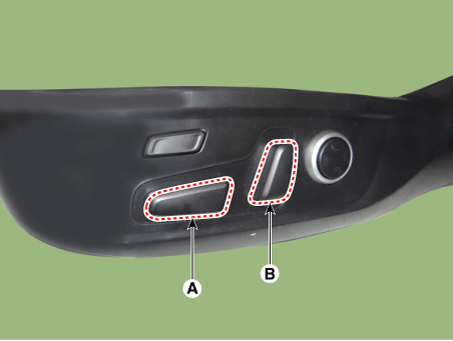

3.	Remove the slide knob (A) and reclining knob (B).

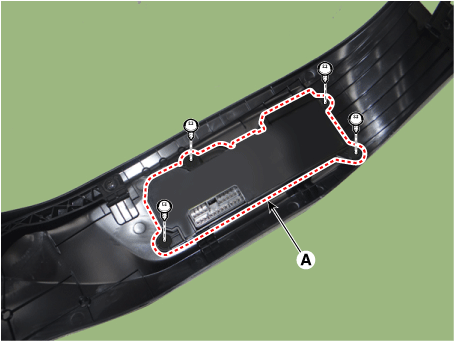

4.	Remove the power seat control switch (A) after loosening the mounting screws.

Installation

1.	Install the power seat control switch.

2.	Install the slide knob and reclining knob.

3.	Install the front seat outer shield cover.

4.	Connect the negative (-) battery terminal.
