Kia Stinger: Rear Suspension System / Rear Stabilizer Bar

Removal

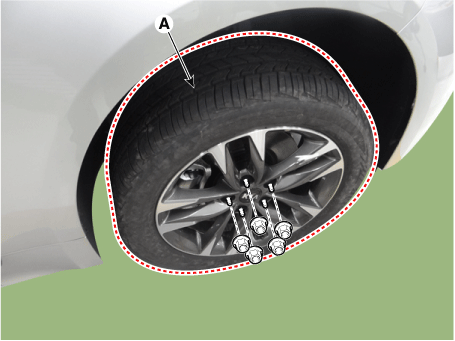

Remove wheel nuts, wheel and tire (A) from hub.

Tightening torque:

107.9 - 127.5 N·m (11.0 - 13.0 kgf·m, 79.6 - 94.0 lb·ft)

Be careful not to damage the wheel bolts when removing the wheel and tire (A).

2.	Remove the brake caliper. (Refer to Brake system - "Rear disc brake")

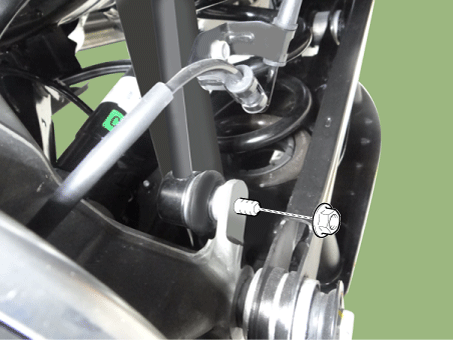

Loosen the stabilizer link nut and then separate the rear axle.

Tightening torque:

98.1 - 117.7 N·m (10.0 - 12.0 kgf·m, 72.3 - 86.8 lb·ft)

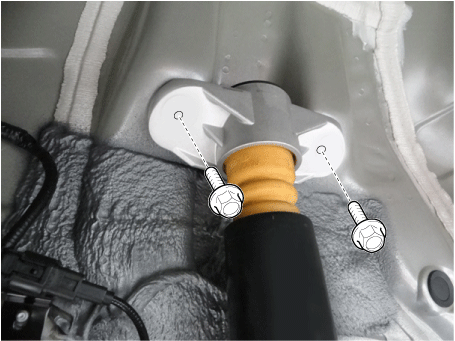

Loosen the rear shock absorber upper bolts and the remove the rear shock absorber.

Tightening torque :

63.7 - 78.4 N·m (6.5 - 8.0 kgf·m, 47.0 - 57.9 lb·ft)

Up the transmission jack under the lower arm in order to remove the rear shock absorber in no-load condition.

5.	Remove the propeller shaft. (Refer to Driveshaft and axle - "Propeller shaft")

6.	Remove the rear muffler. D 2.2 R VGT (Refer to Engine Mechanical System - "Muffler") G 2.0 T-GDI THETA II (Refer to Engine Mechanical System - "Muffler") G 3.3 T-GDI LAMBDA II (Refer to Engine Mechanical System - "Muffler")

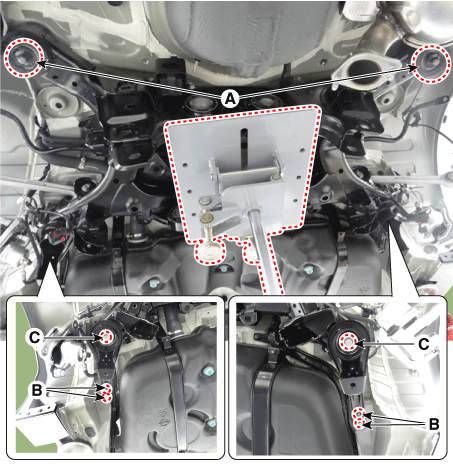

Loosen the rear cross member nuts & bolts and then remove the rear cross member.

Tightening torque :

(A,C) : 176.5 - 196.1 N·m (18.0 - 20.0 kgf·m, 130.2 - 144.7 lb·ft)

(B) : 44.1 - 58.8 N·m (4.5 - 6.0 kgf·m, 32.5 - 43.4 lb·ft)

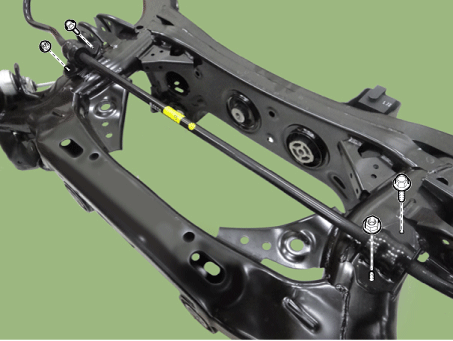

Loosen the stabilizer bar nuts & bolts and then remove the stabilizer bar.

Tightening torque :

49.0 - 63.7 N·m (5.0 - 6.5 kgf·m, 36.2 - 47.0 lb·ft)

9.	Install in the reverse order of removal.

10.	Check the alignment. (Refer to Suspension System - "Alignment")

Inspection

1.	Check the rear stabilizer bar for deformation.

2.	Check the rear stabilizer link ball joint for damage.
