Kia Stinger: Suspension System / Rear Suspension System

Kia Stinger CK 2018-2024 Service Manual / Suspension System / Rear Suspension System

Components and components location

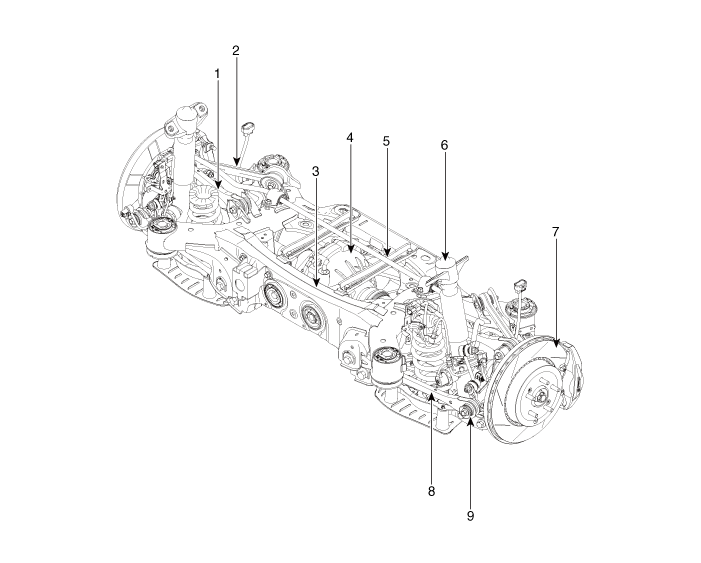

Components Location

1. Rear upper arm rear
2. Rear upper arm front
3. Rear cross member
4. Rear differential
5. Rear stabilizer bar

6. Rear shock absorber
7. Rear axle
8. Rear assist arm
9. Rear lower arm

Sub Frame

Repair procedures Removal [2WD] 1. Remove wheel nuts, front wheel and tire (A) from hub. Tightening torque: 107.9 - 127.5 N·m (11.0 - 13.0 kgf· ...

Rear Shock Absorber

Components and components location Components 1. Lock nut 2. Rear insulator 3. Bumper stopper 4. Dust cover 5. Shock absorber Repair procedu ...
