Kia Stinger CK: Front Door / Front Door Inside Handle

Kia Stinger (CK) 2018-2023 Service Manual / Body (Interior and Exterior) / Front Door / Front Door Inside Handle

Repair procedures

Replacement

Put on gloves to protect your hands.

•	When prying with a flat-tip screwdriver or using a prying trim tool, wrap protective tap around the tool and related parts to prevent damage.

•	Be careful not to scratch the door trim and other parts.

1.	Remove the front door trim. (Refer to Front Door - "Front Door Trim")

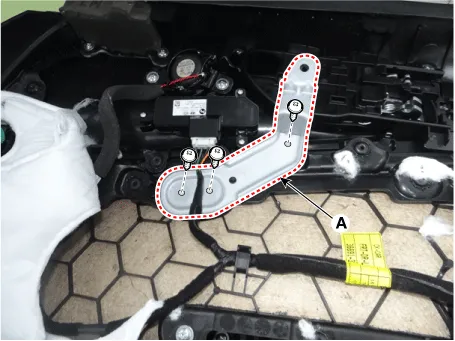

2.	Remove the front door inside handle bracket (A) after loosening the mounting screws.

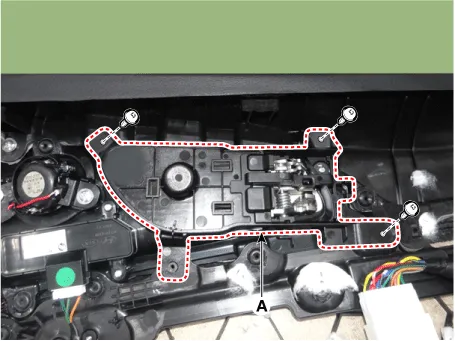

3.	Remove the front door inside handle (A) after loosening mounting screws.

Install in the reverse order of removal.

•	Make sure that the door locks/unlocks and opens/closes properly.

•	Replace any damaged clips.
