Kia Stinger CK: Body (Interior and Exterior) / Front Door

Kia Stinger (CK) 2018-2023 Service Manual / Body (Interior and Exterior) / Front Door

Contents:

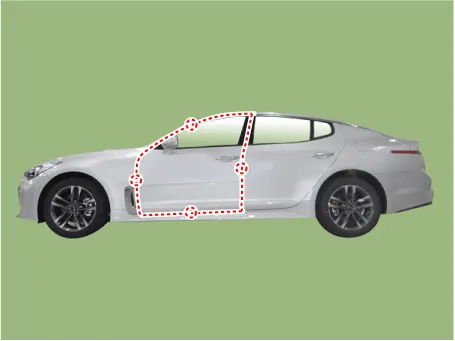

Components and components location

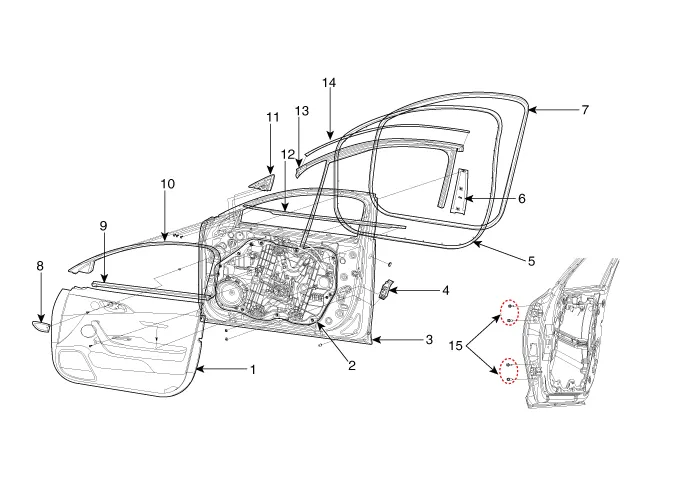

Components

1. Front door trim panel
2. Front door module
3. Front door panel
4. Front door channel
5. Front door side weatherstrip
6. Front door frame garnish
7. Front door body side weatherstrip
8. Front door inside handle cover

9. Front door belt inner weatherstrip
10. Front door frame inner cover
11. Front door quadrant outer garnish
12. Front door window glass run
13. Front door inside handle cap
14. front door frame molding
15. Front door hinge

Repair procedures

Adjustment

Glass Adjustment

Check the glass run channel for damage or deterioration, and replace if necessary.

1.	Remove the front door trim. (Refer to Front Door - "Front Door Trim")

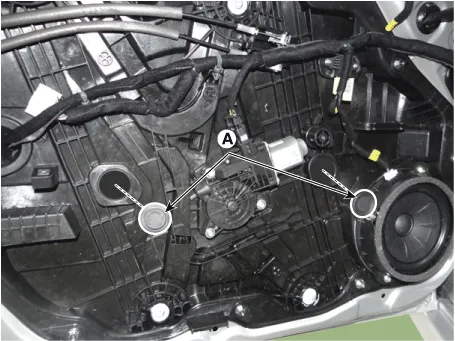

2.	Remove the front door window glass mounting hole plug (A).

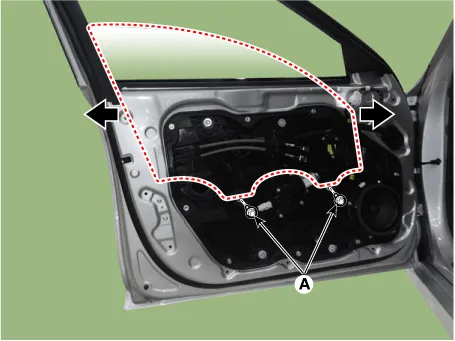

3.	Carefully move the front door window glass (B) until the glass mounting bolts are visible, then loosen them.

4.	Check that the glass moves smoothly.

Door Striker Adjustment

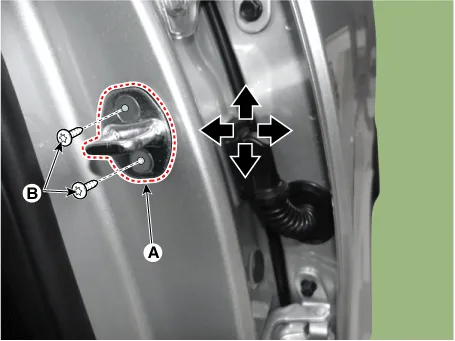

Loosen the bolts (B) just enough for the striker (A) to move.

Tightening torque :

(B) : 16.7 - 21.6 N·m (1.7 - 2.2 Kgf·m, 12.3 - 15.9 lb·ft)

2.	Tap on the striker with a plastic hammer to adjust the striker. The striker will not move much, but will give some adjustment.

3.	Hold the outer handle out, and push the door against the body to be sure the striker allows a flush fit. If the door latches properly, tighten the screws and recheck.

Door Position Adjustment

After installing the door, check for a flush fit with the body, then check for equal gaps between the front, rear, and bottom, door edges and the body. Check that the door and body edges are parallel. Before adjusting, replace the mounting bolts.

1.	Check that the door and body edges are parallel.

2.	Place the vehicle on a firm, level surface when adjusting the doors.

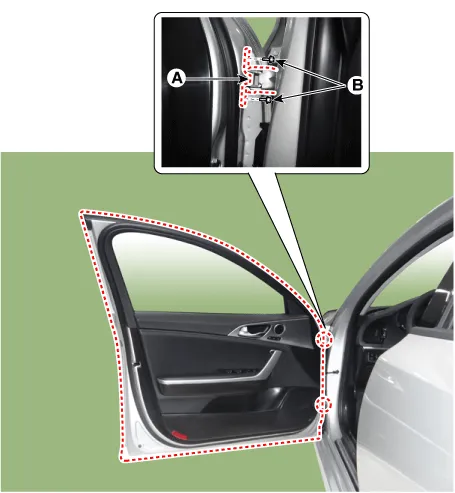

Adjust at the hinges (A) :

•	Loosen the door mounting bolts slightly, and move the door in and out until it aligns flush with the body.

•	Loosen the hinge mounting bolts slightly, and move the door backward and forward, or up and down as necessary to even out the gaps.

•	Place a shop towel on the jack to prevent damage to the door when adjusting the door.

Tightening torque :

(B) : 21.6 - 26.5 N·m (2.2 - 2.7 Kgf·m, 15.9 - 19.5 lb·ft)

4.	Grease the pivot portions of the hinges indicated.

5.	Check for water leaks.

Front Door Trim ➤

Front Door Inside Handle ➤

Front Door Window Glass ➤

Front Door Module ➤

Front Door Outside Handle ➤

Front Door Belt Outside Weatherstrip ➤

Front Door Belt Inside Weatherstrip ➤

Front Door Side Weatherstrip ➤

Front Door Latch ➤
